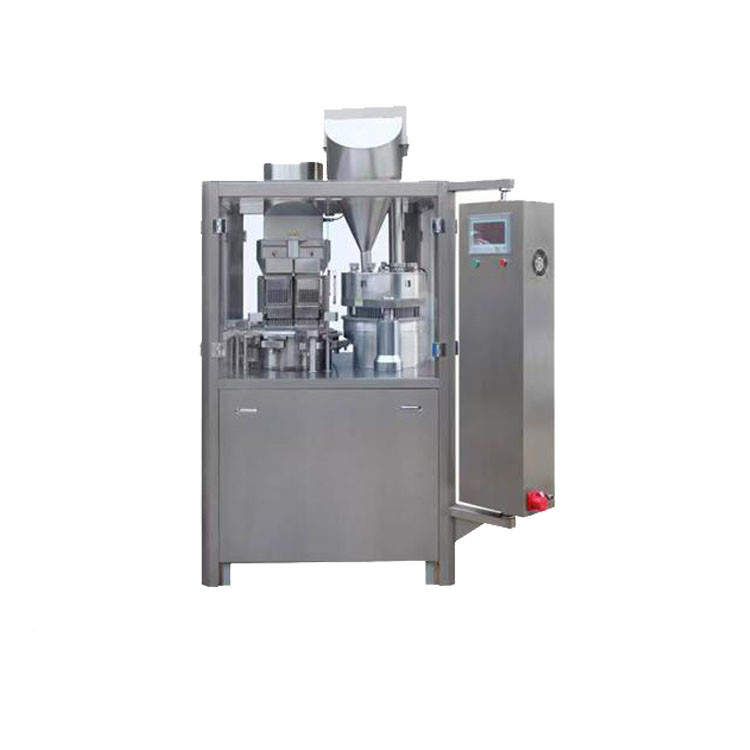

Vitamin C Gelatin Fully Automatic Capsule Filling Machine

Vitamin C Gelatin Fully Automatic Capsule Filling Machine

Products Description of Capsule Filling Machine

The machine has the closed rotating disc with ten stations, with feature of high precision and low noise. It can be continuously running and adopts frequency control, includes the whole capsule filling process such as capsule feeding, separating, powder

and granules filling, waste capsules rejecting, capsule locking and finished capsule outputting. The machine main parts of the bearing and electrical equipment from international famous brand, has a stable performance and can be run at a high speed.

Detailed Parameters of Capsule Filling Machine

Working Principle of Capsule Filling Machine

The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule


During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and

the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling


The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it

enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.

Products Show of Capsule Filling Machine

Feature of Capsule Filling Machine​

1. With small area occupying, low energy consumption, fast mold changing, convenient operation.


2. The rotating disc are fully closed, having excellent lubricating conditions, avoiding the cross pollution with the medicine.

3. Shelters are fixed around the dosing pan, which can make the powder recycling and reduce the dust of the working area.


4. Adopt the touch screen and PLC control, the capacity and total output will be displayed in the touch screen, and machine has alarm system for the capsule lacking, will stop automatically when powder lack.

Application of Capsule Filling Machine
