Product Details:
|
| Name: | Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine | Hopper Volume: | 100L |
|---|---|---|---|
| Capacity: | 10-120bottles/min | Compressed Air: | 06Mpa |
| Machine Weight: | 900KGS | Dimension: | 2160*1560*1700mm |
| Machine Speed: | 2-9999 Pcs /min | Warranty: | 1 Year |
| Highlight: | Gelatin Capsule Counting Machine,9999pcs/min Capsule Counting Machine,Capsule Counting Machine 0.6Mpa |
||

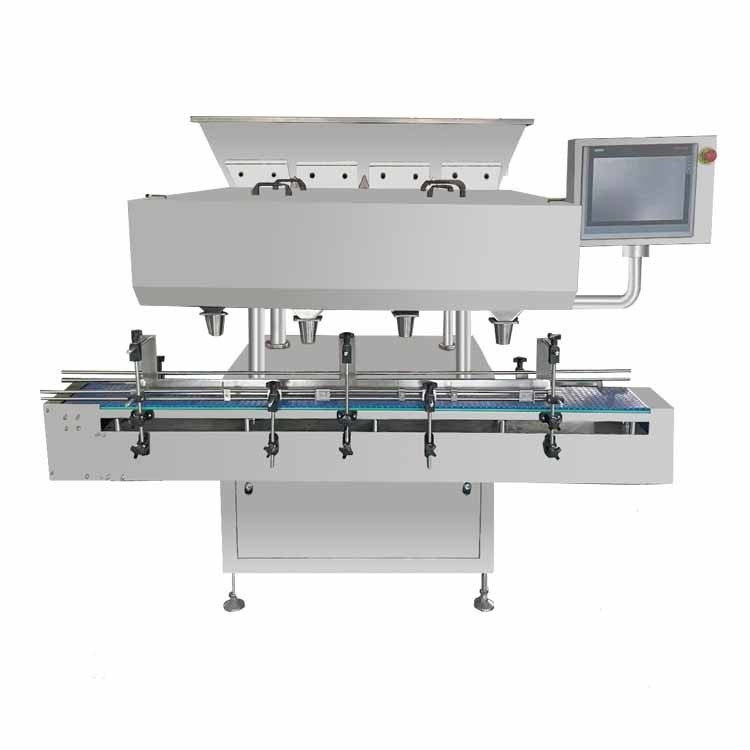

Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine
Technical Parameters of Tablet Counter Machine
| Model name | SED-48S |
| Product name | Energy Saving Automatic 48 Channel Gelatin Capsule Counting Machine |
| Application |
(Diameter: 5.5-22mm) |
| Hopper Volume | 100L |
| Capacity |
10-120bottles/min |
| Filling Quantity | 2-9999pcs/bottle (adjustable) |
| Power supply |
220v 50HZ 1.6KW |
| Compressed air | 0.6Mpa 5L/min |
|
Bottle Size |
Diameter: ≤50mm Height: ≤180mm |
|
Counting Size |
Pills with diameter of 22 or less are compatible with 000-5 capsules soft capsules with diameters of 3.5-22 plain tablets special-shaped tablets sugar-coated tablets |
| Machine Weight | 900kg |
| Machine Size L × W × H (mm) | 2160*1560*1700mm |
Main Features of Tablet Counter Machine
1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2. Vibratory cutting drugs do not damage;
3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
Working Principle of Tablet Counter Machine
Electronic counting machines are our company's star products, which is a stable reliable electronic products that was successfully developed through repeated experiment after a long time research. Its core part and control system
adopt imported original accessories. It mainly consists of such structures as hopper, vibration transmission, photoelectric sensor, dust storage box,human-computer interface.
Product Show of Tablet Counter Machine
Application of Tablet Counter Machine
Suitable for a wide range of granules, such as tablets, capsules, gels, beans, hardwares, candy, etc.0-5#capsules, soft capsules, φ5.5-12 normal tablets, special shape tablets, coating tablets and other solid granules
