Product Details:
|
| Name: | Automatic Rotation And Continuous Tablet Press Machine | Model: | SED-226-8Y-B |
|---|---|---|---|
| Dies: | 8 | Max.Pressure(KN): | 80 |
| Max.dia.of Table(mm): | 22 | Motor(KW): | 2.2 |
| Max.filling Depth(mm): | 17 | Max.tablet Thickness(mm): | 6 |
| Rotation Speed(r/min): | 5-30 | Capacity(Pcs/h): | 14400 |
| Size(mm): | 750×660×1620 | Weight(kg): | 780 |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | Double Pressing Rotary Tablet Machine,100KN Rotary Tablet Press Machine,60000Pcs/h Rotary Tablet Press Machine |
||

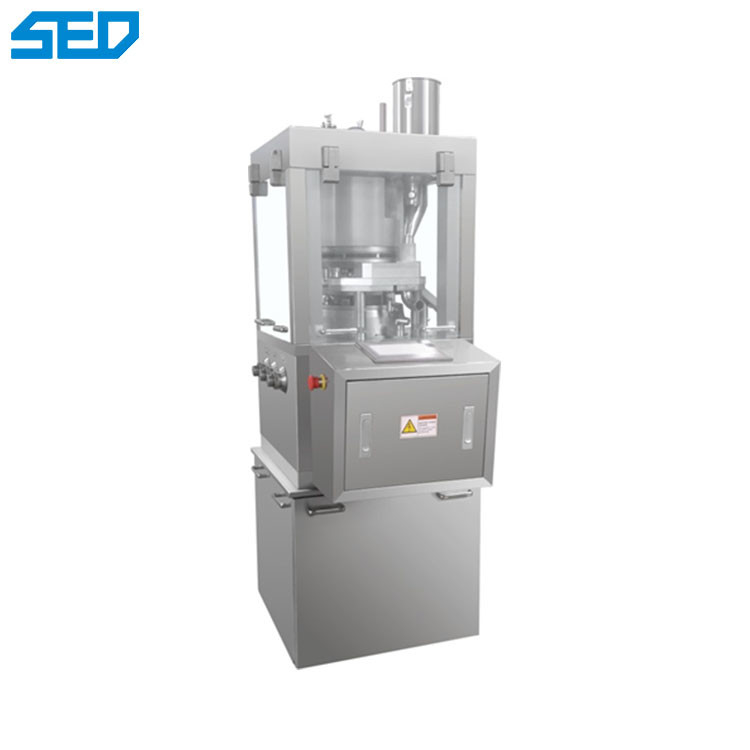

Automatic Rotation And Continuous Tablet Press Machine
Product Overview of Tablet Press Machine
Technique Parameters
| Model | SED226-8Y-B |
| Dies (sets) | 8 |
| Type of Tooling | 1′D |
| Max. Pressure (kn) | 80 |
| Max. Pre-Pressure(kn) | 10 |
| Max. Tablet Diameter (mm) | 22 |
| Max. Filling Depth (mm) | 17 |
| Max. Thickness of largest tablet (mm) | 6 |
| Max. Turret Speed(r/min) | 5-30 |
| Capacity (pcs/hour) | 14400 |
| Motor Power (kw) | 2.2 |
| Overall dimensions (mm) | 750×660×1620 |
| Net weigh t(kg) | 780 |
Features of Tablet Press Machine
1. Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
2. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
3. With dust seal ring on punches, avoid powder leakage from turret table.
4. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
5. It is equipped with overload protection device, when pressure overload, it can stop automatically.
6. Improved thicker upper pressing wheel to increase pressure 100kn to 120kn for stable production.
7. Being the leader in trying to use semi-automatic lubrication device and the top of rotary table is equipped organic glass dust prevention device.
8. Mould length from 115 to 113.6mm, improve abrasion resistance and guidance quality.
9. It is equipped with powder absorbing device , can absorb indoor dust .
10. Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product, it is helpful for standardization, generalization and seriation.
Application of Tablet Press Machine
This machine is a single-compression/double-compression continuous automatic tablet press, which is used to compress granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
