Product Details:
|
| Name: | High Speed Single Head Vial Filling Machine | Filling Range: | 0.1-20ml |
|---|---|---|---|
| Filling Volume Accuracy: | ≤±1% | Capacity: | 50 Bottles Per Minute |
| Main Power: | ≤1.2kw | Compressed Air Pressure: | 0.4-0.6MPa |
| Dosage: | 10-25L/Min | Total Weight: | ≤800kg |
| Highlight: | 25L/Min Vial Filling Machine,Single Head Vial Filling Machine,Stoppering Liquid Filling Machine |
||

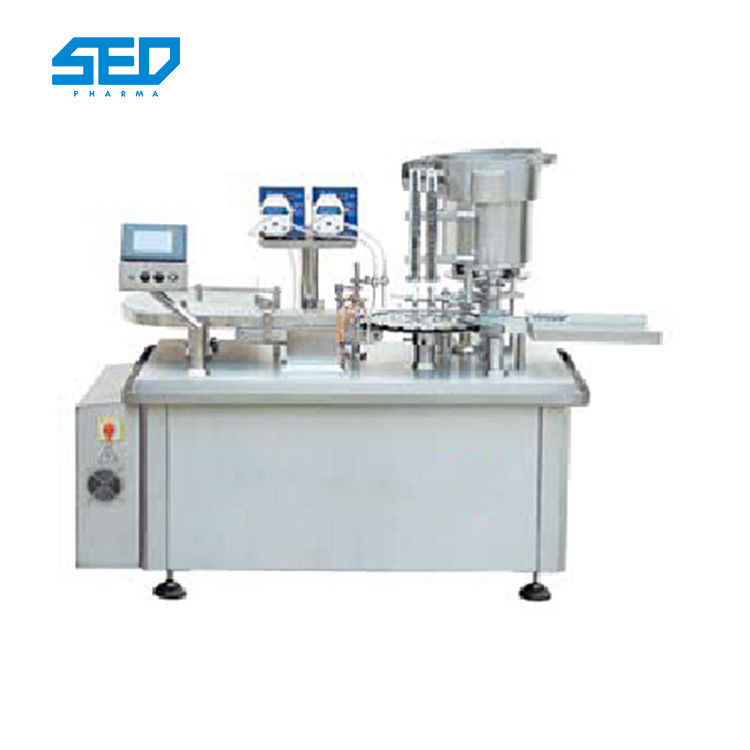

Product Description of Vial Filling Machine
Bottle infeed→Filling→Stoppering→bottle output
|
Filling range
|
0.1-20ml
|
|
Filling volume accuracy
|
≤±1%
|
|
Capacity
|
50 bottles per minute
|
|
Voltage
|
220V 50HZ
|
|
Main power
|
≤1.2kw
|
|
Compressed air pressure
|
0.4-0.6MPa
|
|
Dosage
|
10-25L/Min
|
|
Total weight
|
≤800kg
|
|
Scale dimension
|
1360MM*1000MM*1800MM
|
Feature of Vial Filling Machine
1. Touch screen operation platform.
2. Host frequency control
3. Filling volume can be adjusted entirely or micro adjusts.
4. No filling without bottle.
5. 30L liquid storage tank with auto liquid supplement control.
