Product Details:
|
| Name: | Adjustable Single Head Automatic Capping Machine Glass Plastic Bottle Capper Machine | Capacity: | 25-46 Bottles Per Minute |
|---|---|---|---|
| Capping Rate: | ≥99% | Voltage: | 380V 50HZ. |
| Compressed Air Pressure: | 0.2-0.4MPa | Dosage: | 5-10L/Min |
| Total Weight: | ≤800kg | Scale Dimension: | 1350MM*890MM*1800MM |
| Material: | Stainless Steel | Key Word: | Automatic Capping Machine |
| Highlight: | Pharmaceutical Automatic Capping Machine,1 Head Automatic Capping Machine,0.4MPa Automatic Capping Machine |
||
Product Overview of Capping Machine
Bottle transfer→Cap infeed and capping→cap whirling→bottle output
Product Parameters of Capping Machine
|
Applicable cap size
|
30-500ml
|
|
Capacity
|
25-46 bottles per minute
|
|
Capping rate
|
≥99%
|
|
Voltage
|
380V 50HZ.
|
|
Main Power
|
≤2kw
|
|
Compressed air pressure
|
0.2-0.4MPa
|
|
Dosage
|
5-10L/Min
|
|
Total Weight
|
≤800kg
|
|
Scale dimension
|
1350MM*890MM*1800MM
|
Feature of Capping Machine
1.Explosion-proof control cabinet operating platform, emergency stop button o on the conveyor belt.
2.Host frequency control; automatically display the current working frequency.
3.Cylinder capping
4.Torque adjustable capping head, when the cap is tightened to a certain torque, the automatic slip device ensures the same tightness
5.Automatically stopped when there is no bottle on the infeed track. Automatically start when bottle supplied.

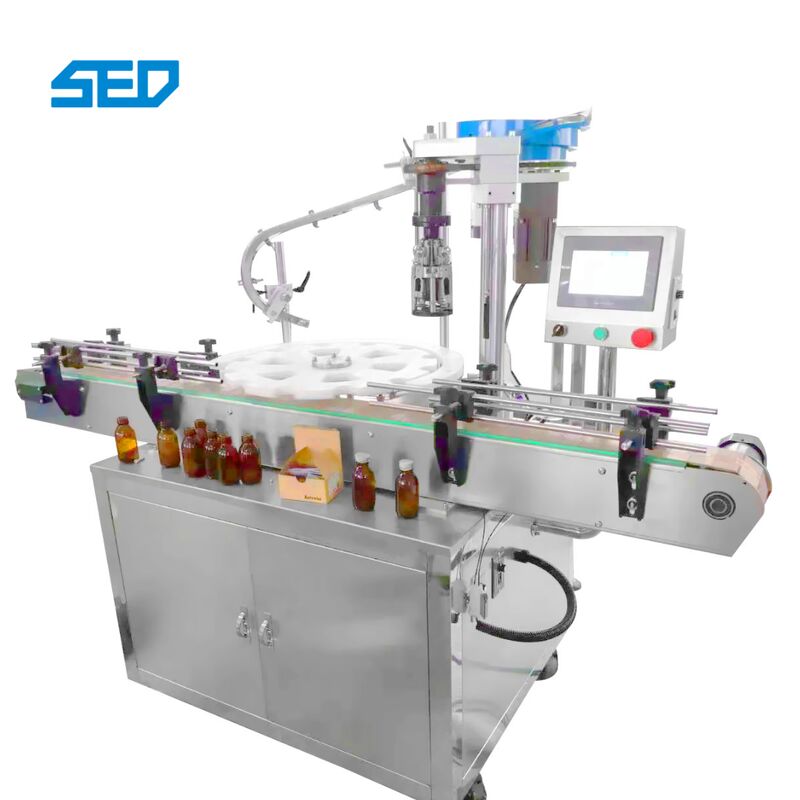

Show of Capping Machine
Application of Capping Machine
This machine has the functions of automatic cover management, cover feeding and cover sealing. The bottles are continuously fed and capped continuously, with high efficiency. Widely used in cosmetics, food, beverage, medicine, biotechnology, health products, personal care chemicals and other industries, suitable for all kinds of screw cap bottles.
On the other hand, it can be connected with an automatic filling machine via a conveyor belt. It can also be connected with electromagnetic sealing machine according to customer requirements.
