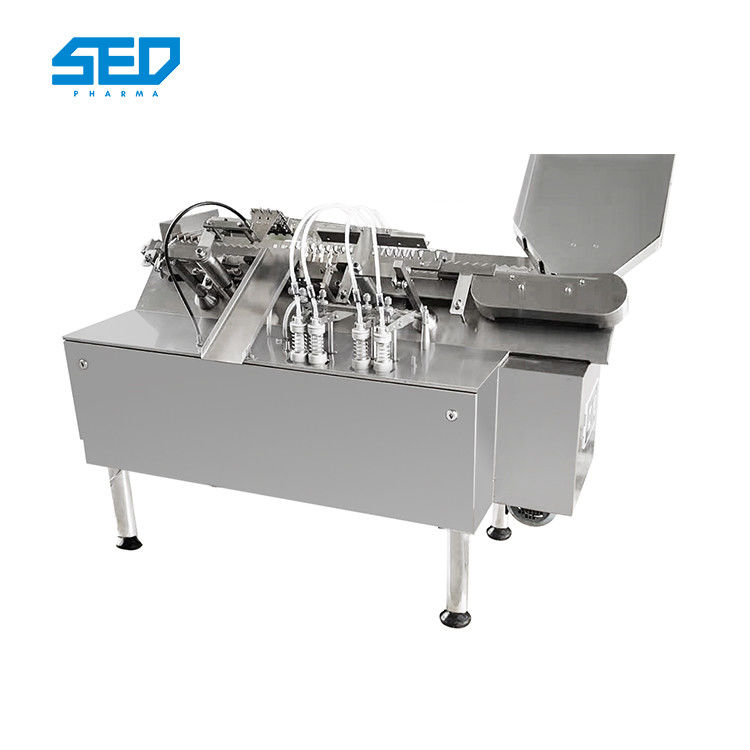

Product Details:
|
| Name: | Pharmaceutical Oral Ampoule Liquid Filling And Sealing Machine | Filling Range: | 5-10ml |
|---|---|---|---|
| Capacity: | 6000-8000 Bottles/hour | Motor Power: | 0.75kw |
| Overall Size: | 1650*1100*1300mm | Key Words: | Ampoule Filling And Sealing Machine |
| Highlight: | Pharmaceutical Liquid Filling And Sealing Machine,SS316L Liquid Filling And Sealing Machine,Car Perfume Liquid Sealing Machine |
||
Machine Parameters
| Name | Ampoule Filling and Sealing Machine |
| Model | SED-4AGL-10-C |
| Filling volume | 5-10ml |
| Production capacity | 6000-8000 bottles/hour |
| Total motor power | 0.75kw |
| Material | Stainless steel 304 |
| Dimensions | 1650*1100*1300mm |
| Packing size | 1800x1300x1500mm |
| Gross weight | 500kg |
Product Description of Liquid Filling And Sealing Machine
It is suitable for ampule filling and sealing in pharmaceutical factories. This machine has a 4-station stepping transmission system. Four bottles are used as a group at a time, and they are sent to each point separately to complete the separation and delivery of bottles. The machine consists pre-filling with nitrogen, material filling, filling with nitrogen, preheating, sealing and other processes.
Main Feature of Liquid Filling And Sealing Machine
It has the cast steel rotating cam, which is very hard and not easy to break down. The machine with low oxygen and gas consumption, and reduces the production cost.
