Product Details:
|
| Name: | High Pressure Rotary Tablet Press Machine | Model: | SED-330-15Y-B |
|---|---|---|---|
| Main Engine Weight (kg): | 850 | Motor Power: | 4KW |
| Overall Dimension (mm): | 615*890*1415 | Motor Power (kw): | 2.2 |
| Capacity (PCS / H): | 15000-40000 | Rotary Speed (R / Min): | 35 |
| Highlight: | 16200PCS/H Rotary Tablet Press Machine,CE Rotary Tablet pressing Machine,2.2kw Rotary Tablet Press Machine |
||

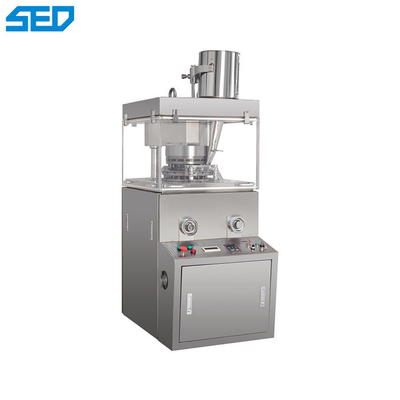

High Pressure Rotary Tablet Press Machine
Product Overview of Tablet Press Machine
SED330-15Y-B Automatic Rotary Tablet Press is a single-pressure automatic rotary continuous tablet press developed by our factory. It can press granular raw materials into various ordinary and special-shaped tablets. It is mainly suitable for electronics, food, daily necessities, pharmaceuticals and other industrial sectors. The outer shell is fully enclosed, and the material is made of stainless steel, which meets the GMP standard. Equipped with a transparent observation window, you can clearly see the working conditions of the machine and can be fully opened, which is easy to see and maintain the inside.
Technique Parameters
| Model | SED-330-15Y-B |
| Number of Punch Die | 15 |
| Capacity | 15000-40000 pcs/h |
| Max. Main Pressure | 80KN |
| Max. Tablet Diameter | 25mm |
| Max. Filling Depth | 20mm |
| Max. Tablet Thickness | 8mm |
| Turret Speed | 35rpm |
| Motor Power | 4KW |
| Weight | 850kg |
| Overall Dimension | 615*890*1415mm |
Application of Tablet Press Machine
This machine is a single-compression/double-compression continuous automatic tablet press, which is used to compress granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
