Product Details:
|
| Name: | PLC Control Automatic Liquid Ampoule Filling Machine Pharmaceutical Machinery Equipment | Capacity:: | 100 Bottles / Min |
|---|---|---|---|
| Filling Head:: | Five Filling Head Filling | Packaging Materials:: | PVC/PE (0.2 0.4) X 120 Mm |
| The Filling Capacity:: | 1-50 Ml/branch | Total Power:: | 6.0 Kw |
| Weight (kg):: | 850 Kg | Overall Dimensions (length X Width X Height):: | 2300 X 850 X 1450(mm) |
| Material: | Stainless Steel | Key Word: | Ampoule Filling Machine |
| Highlight: | 6.0kw Pharma Process Equipment,100 Bottles/Min Pharma Process Equipment,Ampoule Filling Pharma Process Equipment |
||
PLC Control Automatic Liquid Ampoule Filling Machine Pharmaceutical Machinery Equipment
Product Parameters of Ampoule Filling Machine
|
Maximum depth forming:
|
12 mm
|
|
Capacity:
|
100 bottles / min
|
|
Filling head:
|
Five filling head filling
|
|
Packaging materials:
|
PVC/PE (0.2 0.4) x 120 mm
|
|
The filling capacity:
|
1-50 ml/branch
|
|
Total power:
|
6.0 kw
|
|
voltage:
|
Three-phase 220 v / 60 hz (three-phase 380 v / 50 hz)
|
|
Weight (kg):
|
850 kg
|
|
Overall dimensions (length x width x height):
|
2300 x 850 x 1450(mm)
|
Feature of Ampoule Filling Machine
1, PLC control, steeples frequency conversion adjustment.
2, paper, plastic molding, filling, batch number, cut the tail, cutting, etc. 7 location by the program automatically.
3, man-machine interface device, the operation is simple and clear.
4, filling head does not drip, no bubble, no overflow.
5, and related parts in contact with the liquid are all made of high quality stainless steel material, conform to GMP standard.
6, main pneumatic components, electrical appliances imported accessories.
7, electronic peristaltic pump control filling system and mechanical filling two kinds, accurate measurement error is small.

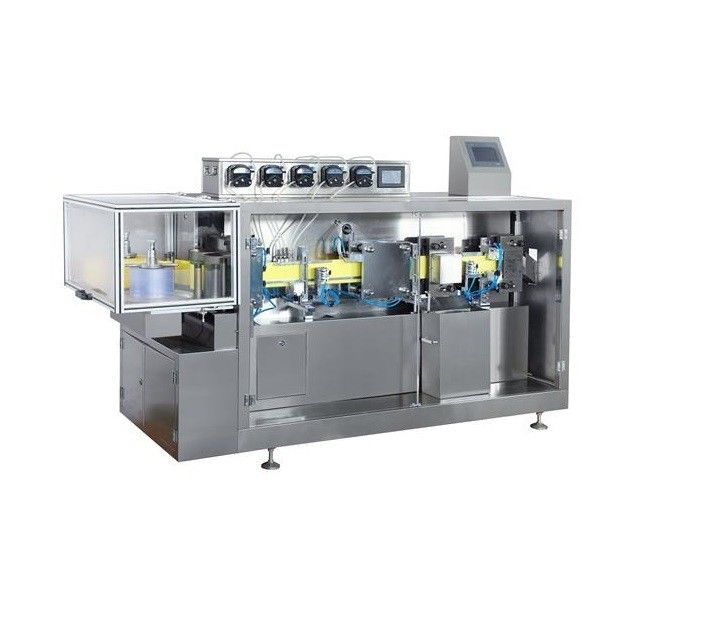

Show of Ampoule Filling Machine
Application of Ampoule Filling Machine
This machine is a compact liquid filling and sealing machine, suitable for small batch filling of different varieties.
Products are widely used in filling oral liquid, perfume, liquid, essential oil, olive oil, health care products, etc.
Pharmaceutical, herbal, pesticide, cosmetic, food and supplement fields.
