Product Details:
|
| Name: | Advance Material Payment Type Transparent Film 3D Packaging Machine Cellophane Packing Machine | Production Capacity: | 30～70 Bags/min |
|---|---|---|---|
| Packing Size: | (L)60-260×(W)30-160×(H)15-70mm | Candy Spec: | Square 10-24 Circular Φ10-24 |
| Weight: | 380kg | Size: | (L)1500×(W)850×(H)1700mm |
| Material: | Stainless Steel | Key Word: | Cellophane Packing Machine |
| Highlight: | 3kw Candy Packing Machine,800bags/min Candy Packing Machine,fully automatic candy packing machine |
||

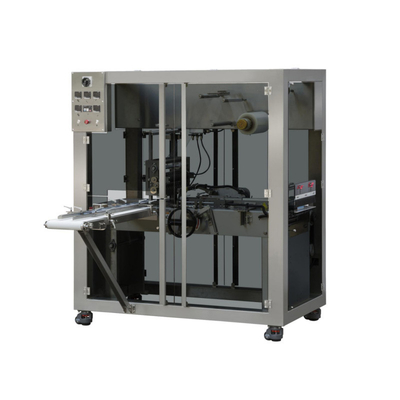

Product Overview of Cellophane Packaging Machine
This machine is suitable for automatic film packaging (with gold wire) of single box shaped items in various industries. The overall frame of this machine adopts carbon steel spray coating, floor standing multi opening safety door structure, and a flat push box structure. The mold replacement is simple, and the adjustment distance is adjusted manually at multiple places, greatly saving mold replacement time. The fixed film is fixed by an air expanding shaft roller, making the film replacement simpler and faster.
Product Parameters of Cellophane Packaging Machine
| Item.No | SED-160SWB-R |
| Packaging material | BOPP film and gold tear tape |
| Packaging speed | 30～70 packs/min |
| Maximum | (L)60-260×(W)30-160×(H)15-70mm |
| Power | 220V 50Hz 5kw |
| Weight | 380kg |
| Size | (L)1500×(W)850×(H)1700mm |
Feature of Cellophane Packaging Machine
1. This machine is a fully automatic high-speed transparent film packaging equipment, which adopts a flat push packaging method. All wrapping and heat sealing actions are completed by cam transmission, and it has the characteristics of fast speed and stable operation.
2. By changing the mold, items of different sizes can be packaged. The newly designed quick adjustment structure makes mold replacement easier and faster.
3. This machine adopts an all aluminum alloy film cutting knife holder and a single rotating film cutting knife, which can cut the film accurately and smoothly. There is no need to replace the film cutting mechanism for products of different sizes.
4. Use a frequency converter to adjust the packaging speed, which can reach 30-70 packages per minute depending on the packaging items.
5. Equipped with a double-sided wrinkle shaping and cosmetic device, making the film packaging more snug and aesthetically pleasing.
6. The new quick detachable cable reel comes with a composite adhesive laser anti-counterfeiting unsealing line function, which truly plays a role in anti-counterfeiting and moisture-proof.
7. There are two types of feeding mechanisms: automatic feeding and manual feeding. Automatic feeding can be connected to fully automated unmanned production lines.
8. The automatic feeding mechanism has a box stop function, equipped with a jamming torque overload protection device and a double-layer blowing auxiliary lower film device.
9. Imported stainless steel integrated panel is used, with an integrated electrical box installed on the top and a sedan tailgate opening all aluminum electrical box door.
10. Acrylic safety cover for the entire machine
