Product Details:
|
| Name: | Vibration Template Capsule Counting Machine Automatic Capsule Counter | Model: | SED-4MS |
|---|---|---|---|
| Size Of Bottles: | 20-300ml | Output(Tablet): | 30-60 Bottles/min (100 Pcs/bottle) |
| Output(Capsule): | 30-50 Bottles/min (60pcs/bottle) | Machine Size L × W × H (mm): | 1650×680×1580 |
| Highlight: | vibration template automatic capsule counter,300ml automatic capsule counter,60pcs automatic capsule counter |
||
Detailed Parameters of Counting Machine
|
Model
|
SED-4MS
|
|
Size of medicament
|
Tablet:φ5-12mm Capsule:00#-5# all kinds of soft capsule
|
|
Size of Bottles
|
20-300ml
|
|
Output(Tablet)
|
30-60 bottles/min (100 pcs/bottle)
|
|
Output(Capsule)
|
30-50 bottles/min (60 pcs/bottle)
|
|
Machine Weight
|
500kg
|
|
Machine Size L × W × H (mm)
|
1650×680×1580
|
Product Description of Counting Machine
The unique counting template ensures that the machine can count and fill regular tablets and pills but also irregular tablets and capsules.
Eccentricity sifting device our company designs and develops independently is a national patented product, which overcomes the problems other companies meet: gear-driven device is high noise, easily damaged and difficult to adjust.
The machine is super-mute and variable frequency controlled. It is controlled through PLC based system, so it runs reliably. The machine makes use of international brand photoelectric controls for inspecting if lacking bottle and if bottle jammed to realize prompt stop once malfunction occurs.
And it also has protective functions against over-load, over-current, under-voltage, over-voltage, etc. Materials in contact with medicament conform to requirements of GMP.

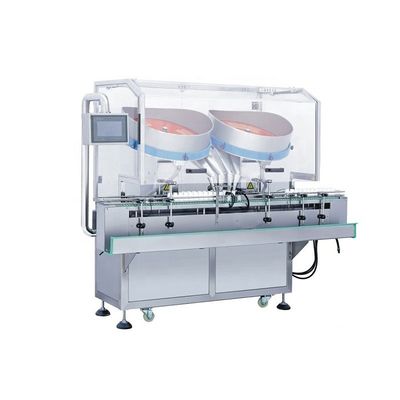

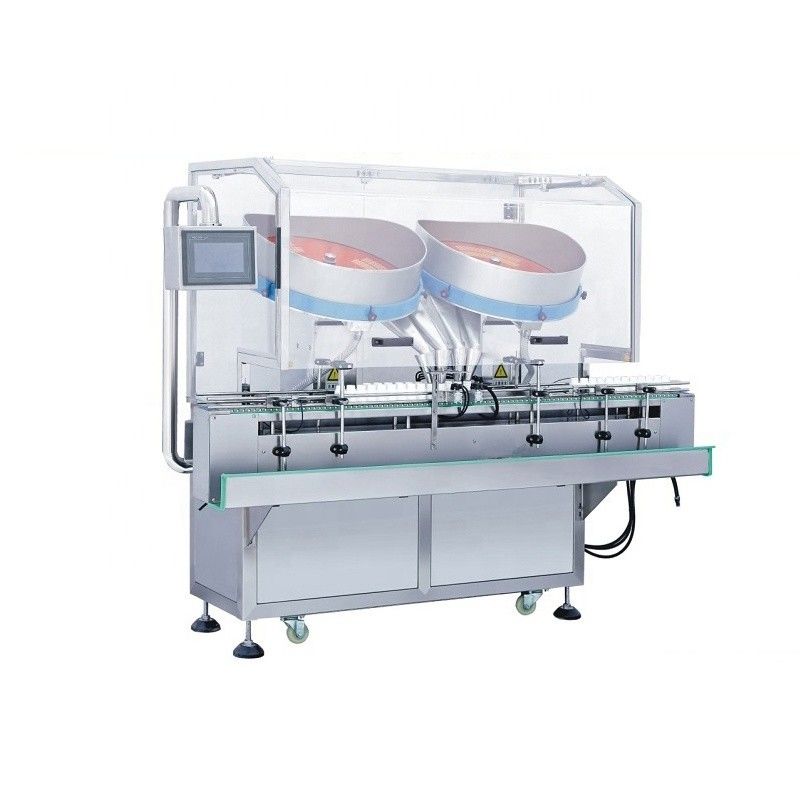

Photo show of Counting Machine
Application of Counting Machine
This machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted
and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories
