Product Details:
|
| Name: | Fully Automatic Horizontal Cartoning Machine For Cosmetic | Carton Size Range: | L(70-250)mm X W(70-200)mm X H(30-80)mm |
|---|---|---|---|
| Power: | 1.5Kw | Machine Noise: | ≤80dB |
| Gas Source: | 0.5-0.8 Mpa | Air Consumption: | 120-160L/min |
| Dimension: | 4300X1400X1800 Mm | Weight: | 1500Kg |
| Paper Box Paper Requirements: | 300-450g/m3 | Power Type: | Three-phase Four-wire 380V 50Hz |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | 65boxes/min blister packaging machine,1.5Kw blister packaging machine,Fully Automatic blister packaging machine |
||

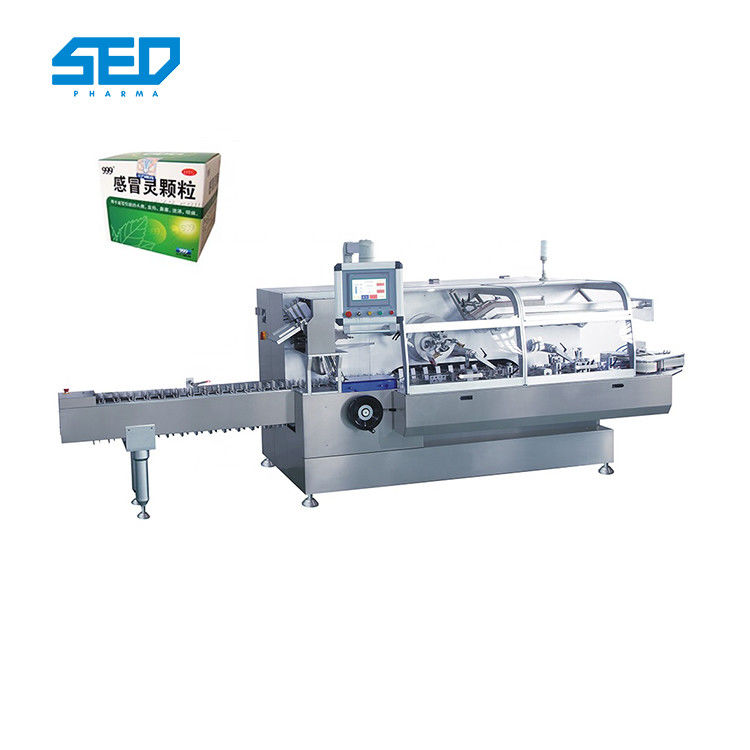

Product Description of Cartoning Machine
This is a Cartoning Machine Line applies to all aluminum-plastic-aluminum blister packaging for the pharmaceutical and food packaging.
It can reduce labor intensity and product costs, improve production efficiency and product packaging production yield, effective control of the cross-contamination of the packaging, and to ensure that the production process meets GMP requirements, is the ideal packaging equipment for medicine, food and other production enterprises.
Blister Packing Line Cartoning Machine Line can be designed according to customer requirements.
Product Description of Cartoning Machine
|
Capacity
|
0-65 boxes/min
|
|
Carton size range
|
L(70-250)mm x W(70-200)mm x H(30-80)mm
|
|
Power
|
1.5Kw
|
|
Machine noise
|
≤80dB
|
|
Gas source
|
0.5-0.8 Mpa
|
|
Air consumption
|
120-160L/min
|
|
Dimension
|
4300X1400X1800 mm
|
|
Weight
|
1500Kg
|
|
Paper box paper requirements
|
300-450g/m3
|
|
Power type
|
Three-phase four-wire 380V 50Hz
|
Feature of Cartoning Machine
1.It is the center of the whole packing system.
2.It will transport and pack the finished product in to paper box according to the required arrange.
3.Entire electric appliance buttons are all Schneider.
4.full mechanical drive mining machines, machinery parts and high stability.
5.It is simple, easy adjustment, no doubt damaged carton.

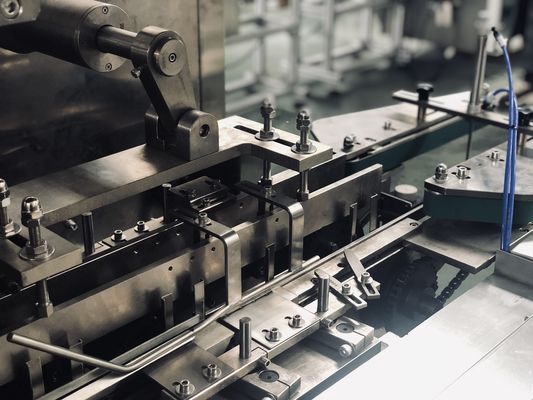

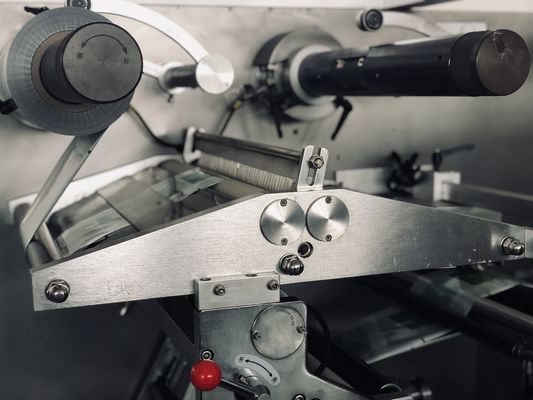

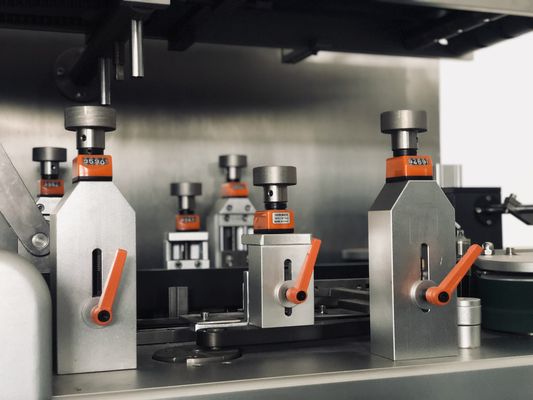

Product Show of Cartoning Machine
Application of Cartoning Machine
