Product Details:
|
| Name: | Automatic Rotary Effervescent Tablet Press Machine Tablet Compression Machine | Capacity (pcs/h): | 27000 Pcs/h |
|---|---|---|---|
| Weight (KG): | 2000KG | Main Motor Power(KW): | 3kw |
| Max. Pressure: | 80KN | Warranty: | 1 YEAR |
| Material: | Stainless Steel | Max. Tablet Diameter: | 25mm |
| Filling Depth: | 10-18mm | Tablet Thickness: | 3-6mm |
| Turret Speed: | 10-20rpm | Key Word: | Tablet Press Machine |
| Highlight: | 7.5kw tablet compression machine,187200pcs/h tablet compression machine,18mm tablet compression machine |
||

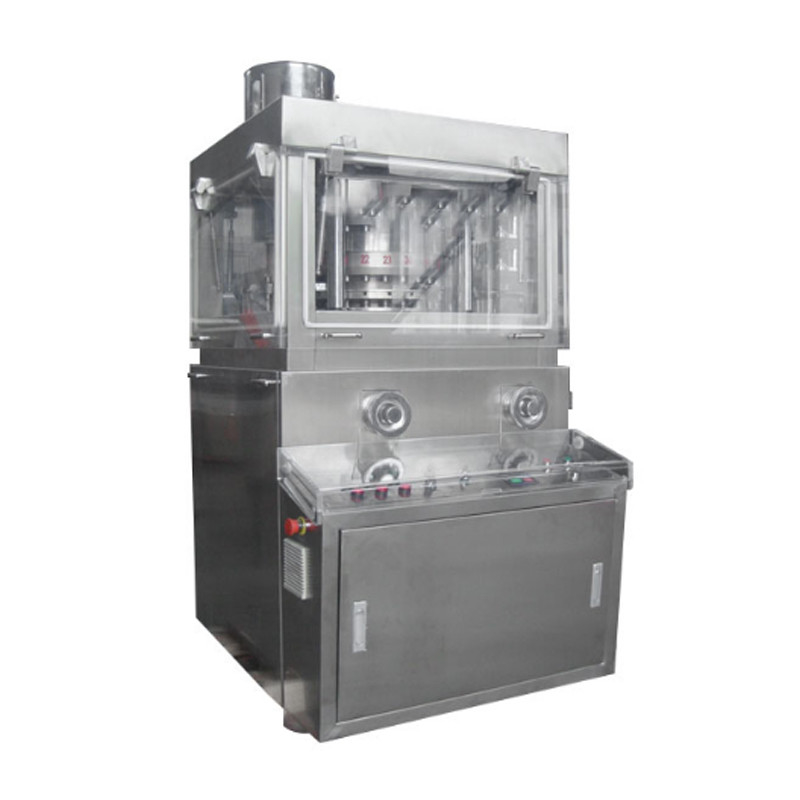

Automatic Rotary Effervescent Tablet Press Machine Tablet Compression Machine
Product Description of Tableting Machine
SED-780-23Y-D Automatic Rotary Effervescent Tablet Press Machine is specialized in repressing effervescent tablet from granular raw materials. It is mainly used to produce tablet in the pharmaceutical industry. This machine uses a special way for solving the problems of demolding difficultly, such as strong stickiness, poor mobility, easy to damp, high humidity and so on. It is the best choice for suppressing in the high humidity environment.
Product Parameters of Tablet Making Machine
| Model | SED-780-23Y-D |
| Number of Punch Die | 23 |
| Capacity | 27000 pcs/h |
| Max. Pressure | 80KN |
| Max. Tablet Diameter | 25mm |
| Filling Depth | 10-18mm |
| Tablet Thickness | 3-6mm |
| Turret Speed | 10-20rpm |
| Motor Power | 3KW |
| Weight | 2000kg |
| Overall Dimension | 1230*950*1800mm |
Feature of Tablet Punching Machine
1.The cover of this tablet press machine is made of stainless steel with enclosed type. The inner surface is also made of stainless steel which could keep surface clean and prevent from cross pollution, meets GMP requirement.
2.The compression area is enclosed with transparent organic glass. Through the transparent protective cover can see the mechanical operation clearly, and can be fully opened, easy to clean and maintain.
3.Speed can be adjusted freely.
4.Mechanical and electrical integration, variable speed operation.
5.Transmitting system is sealed in the oil box under the main machine, which works separately without pollution and easy to send out heat and resist grinding.
6.Machine equipped with suction machine which could absorb the powder of working area.
Application of Tablet Punching Machine
pharmaceutical effervescent tablet press making machine with best price is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets.
