Product Details:
|
| Name: | Electronic Vibrating Capsule Tablet Counting Machine | Capacity (pcs/h): | 11665pcs/h |
|---|---|---|---|
| Weight (KG): | 560 | Dimension(L*W*H): | 1560*1530*1700mm |
| Compressed Air: | 0.6Mpa | Filling Quantity: | 2-9999pcs/bottle (adjustable) |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | 6000pcs/H Automatic Tablet Counting Machine,40L Automatic Tablet Counting Machine,0.5Mpa Automatic Tablet Counting Machine |
||
Product Introduction of Counting Machine
SED-24S Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head.
The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Product Parameters of Counting Machine
|
Model Name |
SED-24S |
|
Capacity (pcs/h) |
11665pcs/h |
|
Dimension(L*W*H) |
1560*1530*1700mm |
|
Weight (KG) |
560KG |
|
Compressed air |
0.6Mpa |
|
Filling Quantity |
2-9999pcs/bottle |
|
Hopper Volume |
66L |
|
Usage |
tablet |
|
Diameter(Bottle Size) |
35-50mm |
|
Height(Bottle Size) |
30-180mm |

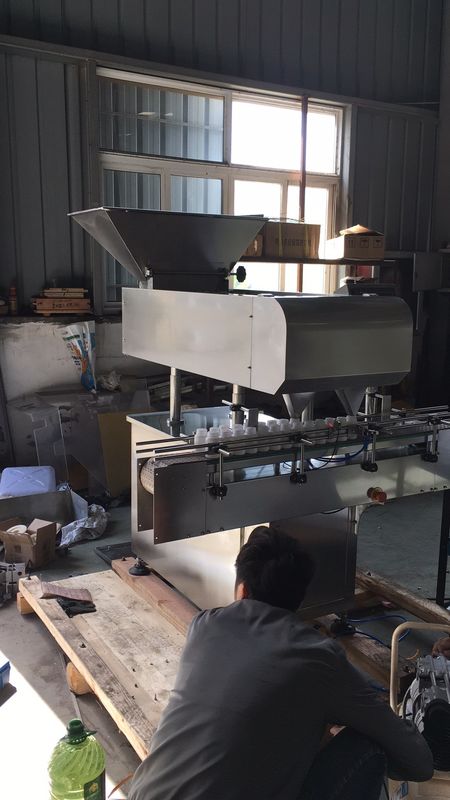

Product Show of Counting Machine
Feature of Counting Machine
Suitable all standard and irregular shapes and all sizes of tablets, capsules, caplets etc;
Counting discrepancies is less than 1‰
Operation stable and lower noise
Bottle convey smoothly with dual-tracks conveyor
High speed filling with dual-nozzle
Full-set protecting device keep operation steady and reliable
Touch screen Control System which is easy to control
Simple Straight Forward Operator Controls
On-Screen trouble description which is easy to solve
Stainless Frame
Industry Type(s): Nutraceuticals, Pharmaceuticals, Food & beverage
Application of Counting Machine
