Product Details:
|
| Name: | Semi Automatic Powder Granules Capsule Filling Machine With PLC Control | Dimension(L*W*H) Thickness(mm): | 1140X700X1630mm |
|---|---|---|---|
| Capacity (Capsule/min): | 100 - 500 | Filling Accuracy(%): | 99.7 % |
| Capsule Size: | 3#, 0#, 00#, 2#, 4#, 1#, 5# | Machine Output: | 500 Grains / Min |
| Material: | Stainless Steel | Key Word: | Capsule Filling Machine Semi Automatic Capsule Filling Machine |
| Highlight: | semi automatic capsule filler,semi auto capsule filling machine,semi automatic capsule filling machine |
||

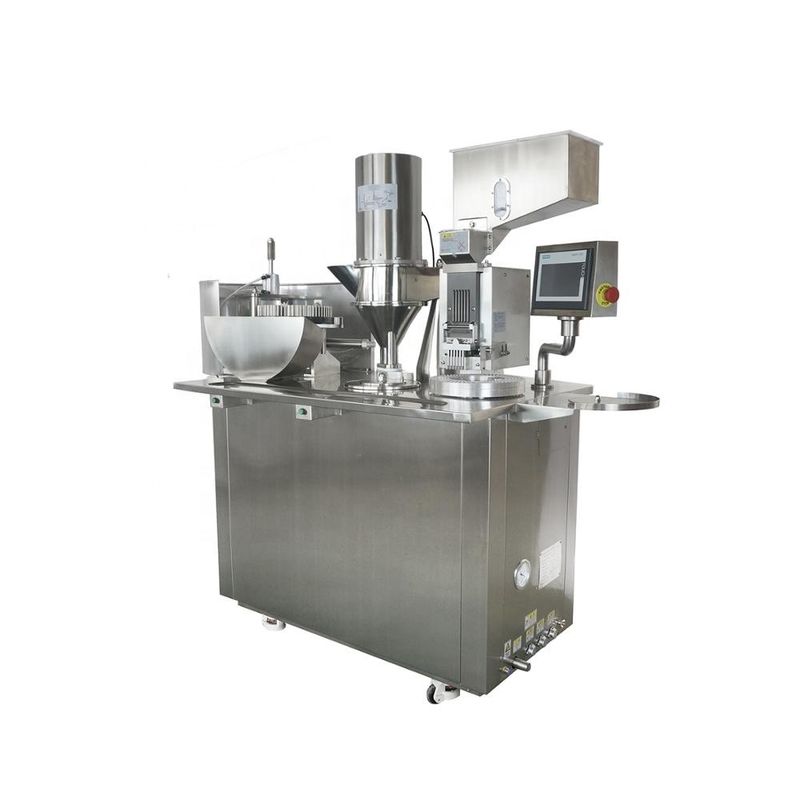

Product Overview of Capsule Filler
The machine is equipped with electric and air control devices and an automatic counting device, which can automatically complete the whole filling process in sequence from positioning empty capsules, separating empty capsules, filling capsules to locking filled capsules.
It is suitable for filling the capsules in sizes 00#,0#,1#,2#,3#,4#. It can be customized to fill size 000# and size 5# capsules, but the filling speed will slow down.
The filling amount can be adjusted by the number of rotations of the dosing disk. The powder feeder also has an auger to regulate the powder filling.
This improvement meets cGMP requirements, and results in faster production, more accurate filling, safer operation, simpler maintenance, super lower noise, easier cleaning and less labor intensive than other machines.
Product Parameters of Capsule Filler
| Product Name | Semi automatic Capsule filling machine |
| Product model | SED-BJ-III |
| Filling Precision | ±3% |
| Filling Materials | Powder, granule, pellet, tablet |
| Suitable capsule | 000#,00#,0#,1#,2#,3#,4#,5# |
| Machine output | 100-500 capsules |
| Machine output | About 30000 capsules / hour |
| Rated voltage | 220V 50HZ |
| Rated power | 4kW |
| Host weight | 350KG |
| Outline size | 1140X700X1630mm |
Feature of Capsule Filler
Dosing precision is achieved in the machine due to the infinitely variable filling speed of the table.
Any change in weight is controlled with the help of an automatic hopper feeding mechanism. It also manages operator workload to increase production.
Since the Augur is capable of operating at four speeds, the machine can handle different variants of powders from hygroscopic to free-flowing.
Capsule automatic closure system for fast and safe closing and ejecting operations.
The loading station automation features solid state control circuitry to ensure that the loading station stops at the end of a cycle of 60 strokes. Thus, this removes the need for workers to pay attention to what is happening.
Semi-automatic capsule filling machines feature the pioneering feature of automatic filling stations, eliminating the need for workers to regularly monitor operations. The bucket features electric swing and swing-back motion to eliminate operator fatigue.
Pneumatic closing stations utilize electric sensors to operate cylinders to simplify the closing process.
The filling machine ensures that the filled capsules are closed vertically to prevent powder spillage, thereby reducing the reject rate throughout the process. This procedure proved beneficial when filling particles and was obtained by allowing two speeds of the auger and nine variable speeds of the filling table.
Details of Capsule Filler
 |

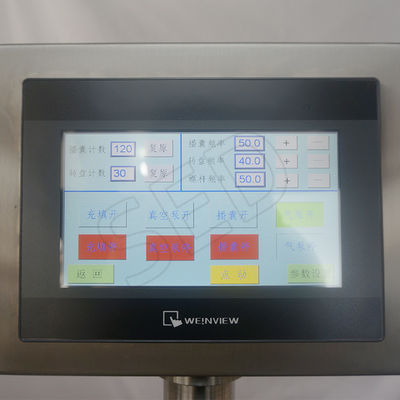

SMART TOUCH SCREEN Bilingual Chinese and English,free switching,can set various parameters and frequency according to the needs,the interface is simple and easy to operate. |
|

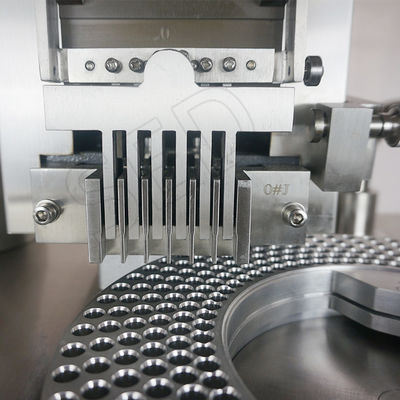

FAST AND ACCURATE SEEDING Made of 304 stainless steel, fully automatic, high speed, high precision, no jamming. |
|

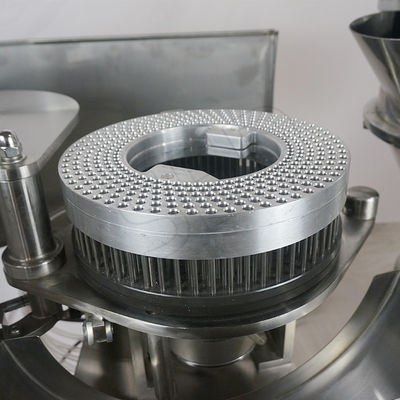

CONVENIENT MOLD REPLACEMENT Surface polishing treatment,high-precision positioning die hole, accurate filling,no powder left during filling. |
|
FILLING WITHOUT RESIDUAL POWDER The blanking speed and die rotation speed are set by PLC,the filling measurement is accurate, and the error is controlled within 3%. |
|
ACCURATE LOCKING With pneumatic device,automatic horizontal locking can reduce labor and improve the utilization rate of raw materials and the quality of finished products. |
Application
Suitable for capsules 000-5 #
Can be filled with powder, granules, pellets or small pieces
|
|
|
| POWDER | GRANULES | PELEETS |
