Product Details:
|
| Name: | Pharmaceutical Tablet Press Machine Medicine Pill Making Machine | Capacity (pcs/h): | 60000pcs/h |
|---|---|---|---|
| Station (Set): | 25 | Rotation Speed(rpm）: | 60rpm |
| Max. Pressure(KN): | 100kN | Voltage: | 220V/380V |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | 60000pcs/H Tablet Press Machine,60rpm Tablet Press Machine,100kN Tablet Press Machine |
||

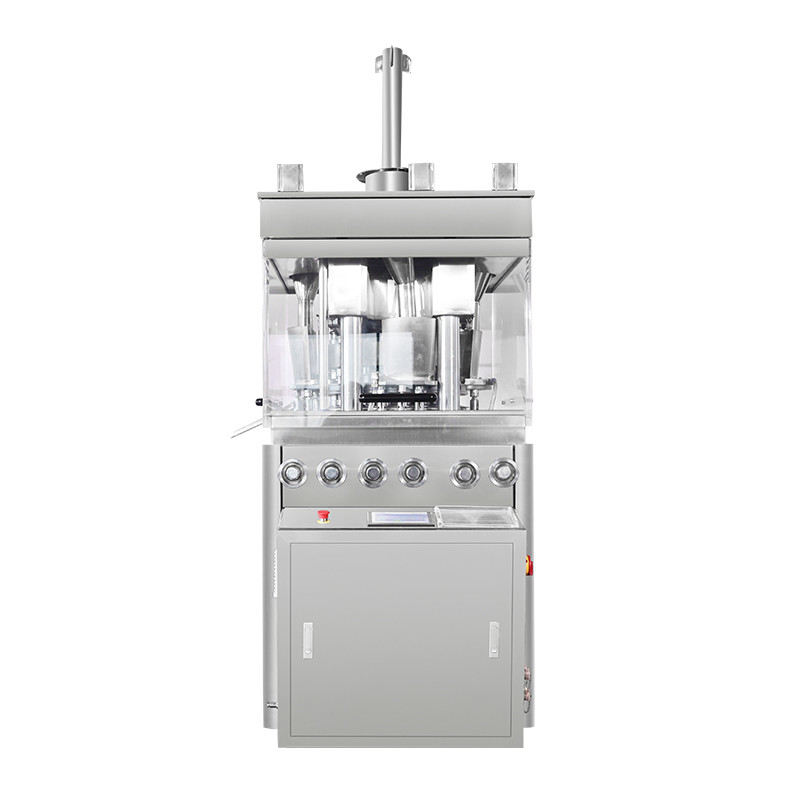

Pharmaceutical Tablet Press Machine Medicine Pill Making Machine
Product Description of Rotary Tablet Press Machine
Automatic rotary tablet press is a kind of equipment which can continuously press powder and granule into round, special-shaped and annular tablets.
It is the first choice for pharmaceutical, chemical, electronic, food and other enterprises for mass production, which meets the requirements of GMP production.
Product Parameters of Rotary Tablet Press Machine
| ITEM | spec |
| Type | SED-445-23Y-D |
| Station | 23 stations |
| Power | 7.5 kw |
| Voltage | 380v 50HZ (according to the request of the customer) |
| Max pressure | 100KN |
| Max diameter of tablets | 40mm |
| Max filling depth | 33mm |
| Max thickness of tablet | 16mm |
| Table valid diameter | 445mm |
| Speed | 6-- 15 RPM |
| Max capacity | 20700 tablet |
| Working table diameter | 445mm |
| Outer diameter of the punch | 45mm |
| Height of middle die | 38mm |
| Diameter of upper and lower punch | 45mm |
| Length of upper punch | 175mm |
| Length of lower punch | 180mm |
| Dimension | 1000x1250x1900mm |
| Weight of machine | 3200kg |

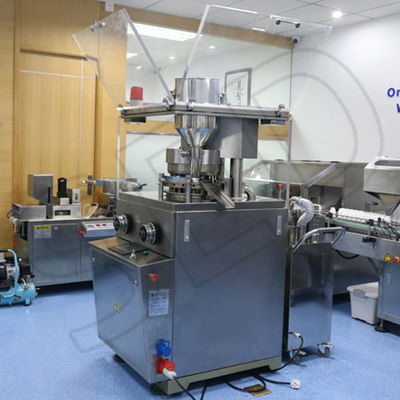

Show of Rotary Tablet Press Machine
Application of Rotary Tablet Press Machine
