Product Details:
|
| Name: | Single-pressure Automatic Rotary Continuous Tablet Press Machine | Capacity (pcs/h): | 35000pcs/h |
|---|---|---|---|
| Max. Tablet Thickness(mm): | 6mm | Rotation Speed(rpm): | 30 Rpm |
| Warranty: | 1 YEAR | Voltage: | 220V/380V |
| Highlight: | 35000pcs/h rotary tablet press machine,6mm rotary tablet press machine,30 rpm rotary tablet press machine |
||

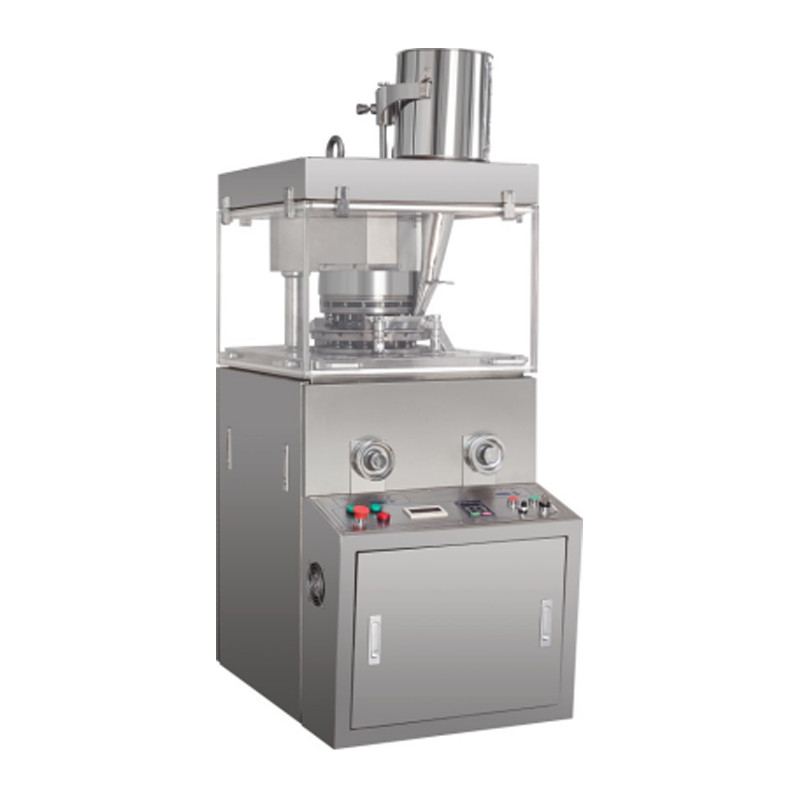

Single-pressure Automatic Rotary Continuous Tablet Press Machine
Product Description of Rotary Tablet Press Machine
SED-330-17Y-B Automatic Rotary Tablet Press is a single-pressure automatic rotary continuous tablet press developed by our factory. It can press granular raw materials into various ordinary and special-shaped tablets. It is mainly suitable for electronics, food, daily necessities, pharmaceuticals and other industrial sectors. The outer shell is fully enclosed, and the material is made of stainless steel, which meets the GMP standard. Equipped with a transparent observation window, you can clearly see the working conditions of the machine and can be fully opened, which is easy to see and maintain the inside.
Product Parameters of Rotary Tablet Press Machine
| Model | SED-330-17Y-B |
| Number of Punch Die | 17 |
| Capacity | 37000 pcs/h |
| Max. Main Pressure | 60KN |
| Max. Tablet Diameter | 20mm |
| Max. Filling Depth | 15mm |
| Max. Tablet Thickness | 6mm |
| Turret Speed | 37rpm |
| Motor Power | 2.2KW |
| Weight | 1000kg |
| Overall Dimension | 615*890*1415mm |
Feature of Rotary Tablet Press Machine
Application of Rotary Tablet Press Machine
