Product Details:
|
| Name: | Automatic Soft Capsules Soft Aluminum-Aluminum Blister Packing Machine | Max. Punching Frequency: | ≤800 Pcs/min |
|---|---|---|---|
| Punching Frequency: | 40~80 Times/minute | Compressed Air: | 0.45 Mpa ≥ 0.2m3/min |
| Maximum Packaging Material Width: | 160mm | Roll Diameter: | 300mm |
| Total Power: | 2.75KW | Equipment Weight: | 700kg |
| Dimensions: | 1300*750*1700mm | Material: | Stainless Steel |
| Key Word: | Soft Aluminum-Aluminum Blister Packing Machine | ||
| Highlight: | packaging automation equipment,automatic bagging machine |
||
Product Description

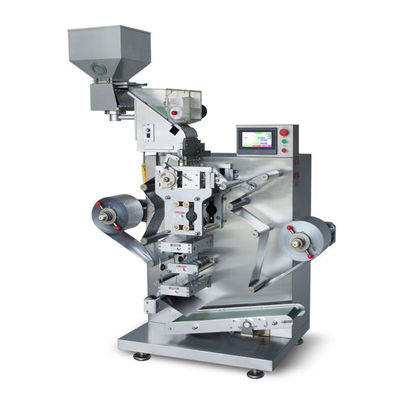

The SED-160RP-F soft double aluminum packaging machine is the latest generation of soft double aluminum packaging equipment developed by our company. The equipment has a novel design, advanced structure, and adopts a PLC touch screen control system. It has the characteristics of high efficiency, low noise, and simple and convenient operation.
The feeding method adopts a vibrating whole line feeding mechanism, equipped with a photoelectric monitoring device, which automatically controls the feeding. The number of punching and cutting plates can be freely set, and the feeding, cutting, heat sealing, cutting, batch number, punching, counting and other processes are all automatically completed, which can achieve high-speed operation. The soft double aluminum packaging is widely used for various tablets, capsules in the pharmaceutical and health products industries, as well as various tablet like electronic components in the electronics industry. It can achieve good sealing and light shielding effects, greatly extending the shelf life of products and making it easy to carry.
Product Parameters
| Production capacity | ≤ 800 pcs/min |
| Max. punching frequency | 40-80 times/min |
| Max. packing size | 160 mm |
| Main motor power | 2.75 KW |
| Rolling material (Aluminum foil) max. diameter | 300 mm |
| Overall dimension (L*W*H) | 1300*750*1700mm |
| Machine weight | 700 kg |
Main Features
A. The equipment casing is made of 304 # stainless steel plate welded together, with a beautiful and practical appearance.
B. The whole machine adopts a PLC touch screen control system, and the number of punching plates can be freely set and adjusted on the touch screen, without worrying about the trouble of frequent replacement of various gears and camshafts due to changing packaging specifications and varieties.
C. The temperature control of the heat sealing roller mold adopts analog temperature module control, and the temperature measurement adopts advanced K-type temperature probe to ensure stable and reliable surface temperature of the heat sealing roller mold, in order to improve the sealing performance of the heat sealing drug plate..
D. The host adopts a frequency converter for stepless speed regulation, ensuring stable and reliable operation of the equipment. The transmission structure is simple and easy to maintain
E. This machine is also equipped with optional functions such as solid-state mold wheel coding, image text matching, fiber optic detection for missing particles and waste removal, to meet the various needs of different customers.
