Automatic Plastic Tube Filling and Sealing Machine

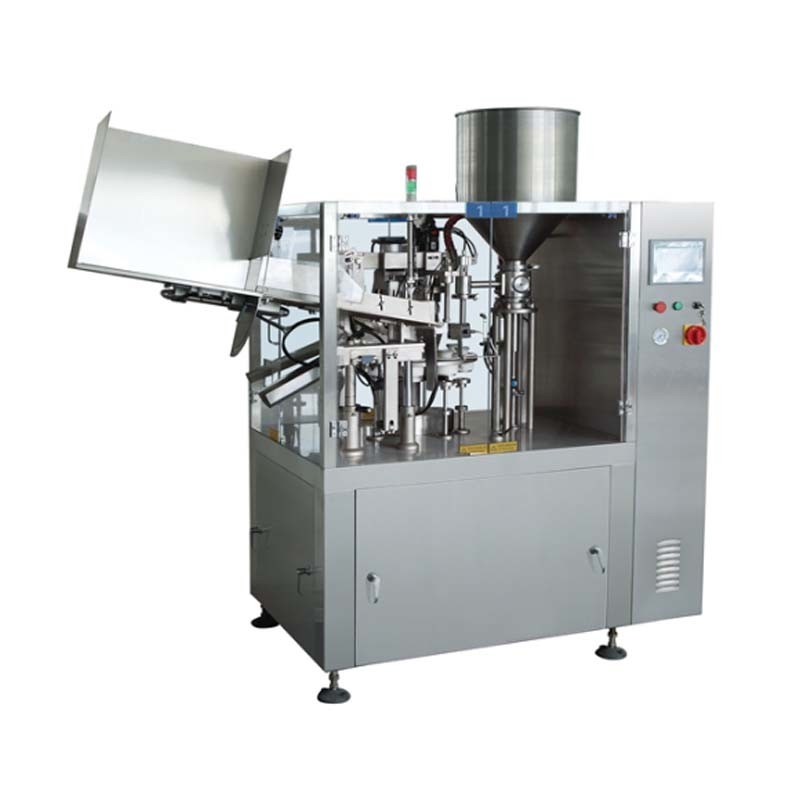

Large Image : Automatic Plastic Tube Filling and Sealing Machine

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-60RG-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, MoneyGram,Cash
Supply Ability:	30 Sets per month

Contact Now

Automatic Plastic Tube Filling and Sealing Machine

Description

Name:

Automatic Plastic Tube Filling And Sealing Machine

Main Machine Landing Area:

≈2m2

Whole Machine(L×W×H):

1950×1000×1800mm

Weight:

（about）850Kg

Highlight:

equipment for pharmaceutical manufacturing

machinery for pharmaceutical industry

Introduction

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Technical Parameters and Configuration Standard

SED-60RG-A AUTO TUBE FILLING AND SEALING MACHINE
		Configuration Standard	Technical Parameters	Remarks
Infrastructure
		Main Machine Landing Area	≈2m2
		Main machine working Area	≈12㎡
		Water Chiller Landing Area	≈1㎡
		Water chiller occupy land Area	≈2㎡
		Whole Machine(L×W×H)	1950×1000×1800mm
		Integrated Structure	Union mode
		Weight	(about)850Kg
Machine body
	Body Material		304
	Opening Mode of Safety Guard		Handle Door
	Safety Guard Material		Organic Glass
	Frame Below Platform		Stainless Steel
	Case Body Shape		Square-shape
Power, Main Motor etc.
	Power Supply		50Hz/380V 3P
	Main Motor		1.1KW

Hot Air Generator	3KW
Water Chiller	1.9KW
Jacket barrel heating power	2 KW		Optional
Jacket barrel blending power	0.18 KW		Optional
Production Capacity
Operation Speed		30-50/min/max
Filling Range		5-250ml
Suitable Tube Length		50-210mm	Tube length more than 210mm Can be customized
Suitable Tube Diameter		13-50mm
Pressing Device
Pressing Guiding Main Component	CHINA
Pneumatic Control System
Low Voltage Protection	CHINA
Pneumatic Component	AIRTAC
Working Pressure	0.5-0.7MPa
Compressed Air Consumption	1.1m³/min
Electrical Control System
Control Mode	PLC＋Touch Screen
PLC	DELTA
Frequency inverter	DELTA
Touch Screen	WEINVIEW
Coder	OMRON

Filling detect Photo electric cell	AUTONICS
Total Power Switch etc.	CHINA
Color Code Sensor	JAPAN SUNX
Hot Air Generator	LEISTER (Switzerland)
Suitable Packing Material & Other Devices
Suitable Packing Material		Aluminum-plastic laminated tube and Plastic tube
Obliquely Hanging Lining-up Tube Storehouse		Speed Adjustable
Material contacting with filling material		316L Stainless Steel
Jacket layer hopper device		Temp. Setting according to material and filling demand	Optional
Jacket layer stirring device		In case of no material mixing, it remains fixed in hopper	Optional
Auto stamping device		Single side or double sides printing at the end of seal tube.

Features and innovation

1. No tube no filling.

2. Have counting function and prompt function when reach set amount.

3. It has error alarm, stopping and alarm for door opening and low air pressure, alarming function for overloading, and has the emergency stop.

4. Automatic batch number printing system and automatic tube discharging.

5. Automatic tube feeding and adopts eye mark sensor.

6. Automatic filling, tail cutting function for viscous material.

7. Main drive system located at the bottom of the machine table, with the feature of safe and without pollution.

8. Filling and sealing part are easy to observation and operation.

9. Smooth and flat surface, have no dead corner, easy for cleaning and maintenance

10. Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc.
