Product Details:
|

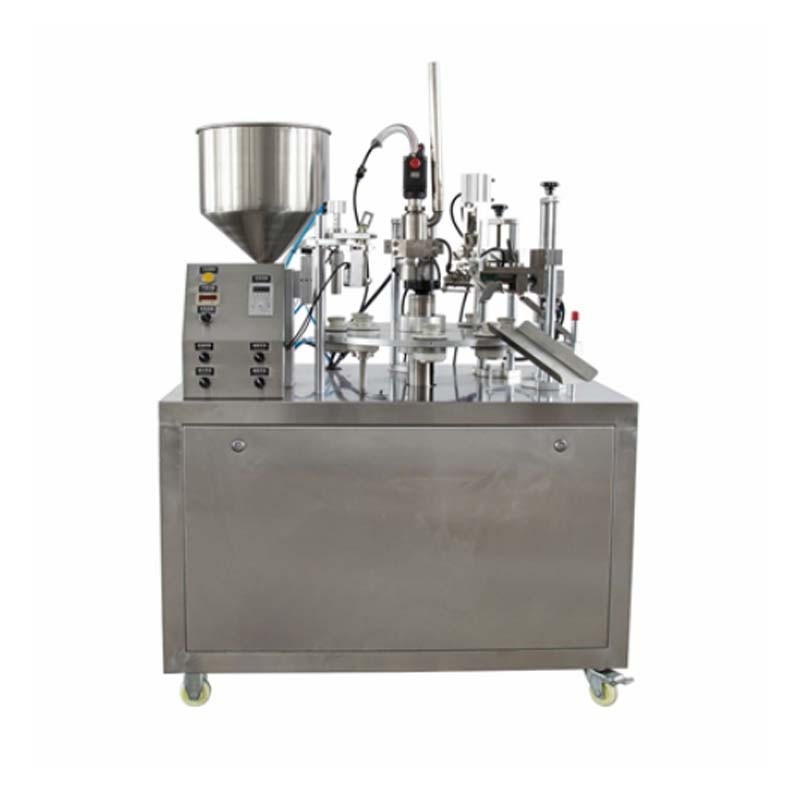

| Name: | Semi Auto Tube Filling And Sealing Machine | Power Supply: | 220V±10% |
|---|---|---|---|
| Power: | Machine 4KW Chiller: 1.9KW | Filling Volume: | 5~250ml |
| Capacity: | 10~30pcs/min | Filling Accuracy: | ±1% |
| Overall Dimension: | 1150X800X1600mm | Weight: | 380kg |
| Highlight: | equipment for pharmaceutical manufacturing,machinery for pharmaceutical industry |
||
Introduction
It is mainly used for the principle of primary transmission. The indexing mechanism is used to drive the turntable equipped with fixtures for intermittent movement to complete a series of functions such as automatic filling and internal heating, sealing, code pressing, edge cutting, and finished product outputting. The filling measurement is accurate, the heating time is stable and adjustable, the sealing appearance is beautiful, neat, firm and hygienic, and the cutting edge is smooth. The machine is set to 8 stations, except for manual tube loading, the other action can be completed finished automatically. The whole machine runs smoothly and reliably, without noise and other pollution.
All contact materials and some related parts of the whole machine are made of high-quality stainless steel, and the parts that need to be cleaned are all equipped with quick-change devices, which is easy to disassemble and wash. Any material that uses plastic tubes and laminated tubes as packaging materials, you can use this machine with confidence. It is the best product selected by the cosmetics industry, pharmaceutical industry, adhesive industry, shoe polish industry, and other related industries.
Main technical parameters
| 1 | Power Supply | ~220V±10% |
| 2 | Power | Machine 4KW Chiller: 1.9KW |
| 3 | Filling Volume | 5~250ml |
| 4 | Capacity | 10~30pcs/min |
| 5 | Filling Accuracy | ±1% |
| 6 | Overall Dimension | 1150X800X1600mm |
| 7 | Weight | 380kg |
| 8 | Working Pressure | ＞0.4Mpa |
