Product Details:
|
| Name: | High Speed Automatic Cartoning Machine For Pharmaceutical Industry | Capacity: | 60-100 Cartons/min |
|---|---|---|---|
| Paper Quality: | 250-400g/m2 | Carton Size: | L(80-210) X W(30X95) X H(20-60) |
| Pressure: | ≥0.6MPa | Consumption: | 20m3/h |
| Power Supply: | 280V-380V 50HZ | Main Motor Power: | 1.5KW |
| Highlight: | equipment for pharmaceutical manufacturing,machinery for pharmaceutical industry |
||
Introduction

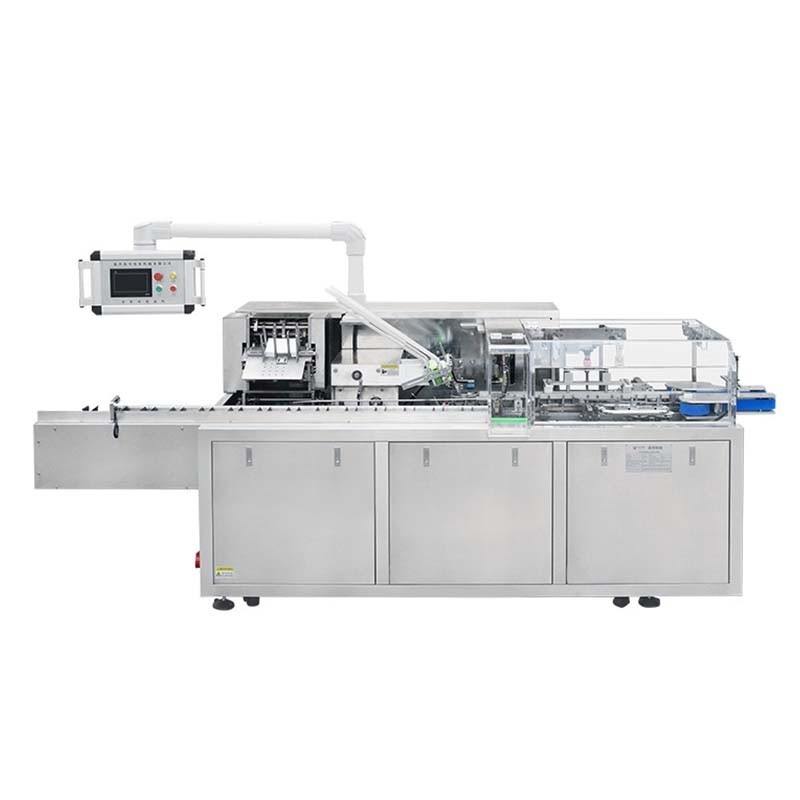

SED-100WZH-N Automatic Cartoning Machine is suitable for automatic cartoning of various products. Its working process includes material conveying, carton unfolding and conveying, automatic material pushing into carton, two-side carton sealing. The appearance of the machine casing is all made of high-quality stainless steel, and the innovative design is strictly in accordance with the GMP requirements of the pharmaceutical industry. The transmission part is designed with an overload protection function, and an emergency stop device is set up. The touch screen is used in the control system to ensure the personal safety of the operator.
Work Procedure and Advantages
| Work Procedure | Advantage |
| Manually place the materials on the feeding station of the cartoning machine | After the cartoning machine detects the material, it unfolds a carton and pushes the material into it. Avoid empty boxes. |
| After the photoelectric sensor detects that there is material coming, it suctions a carton from the carton store room, unfolds and conveys it. | Adopt mechanical carton feeding device, simple and convenient. |
| Material pushing device pushes the material into the unfolded carton and convey it. | Adopt the rear-pull push structure, and pushing is faster. |
| Automatic glue-spraying, sealing and discharging of the carton. | Mechanical sealing is more stable. |
| Finished cartons are output by belt clips. | The belt clips the carton, ensuring that the tongue of each carton can be inserted and buckled. |
Features
Technical Parameter
| Capacity | 60-100 cartons/min |
| Carton Quality Requirements |
Paper Quality: 250-400g/m2 (Flat surface, easy for suction) |
| Carton Size: L(80-210) x W(30X95) x H(20-60) | |
| Compressed Air | Pressure: ≥0.6MPa |
| Consumption: 20m3/h | |
| Power Supply | 280V-380V 50HZ |
| Main Motor Power | 1.5KW |
| Weight | 1300kg |
| Dimensions | 2.2×1.3m (L×W) |
