Product Details:
|
| Name: | Automatic ALU-PVC Blister Packaging Machine | Punch Frequency: | 10-33 Times/min |
|---|---|---|---|
| Capacity: | 2400 Plates/h | Max. Forming Area: | 125x75mm |
| Stroke Range: | 30-80mm (can Be Designed As Per User’s Required) | Standard Plate Size: | 80x57mm (can Be Designed As Per User’s Required) |
| Air Pressure: | 0.4-0.6Mpa | Compressed Air Required: | ≥0.3m3/min (Air Compressor) |
| Highlight: | equipment for pharmaceutical manufacturing,machinery for pharmaceutical industry |
||
Machine Introduction

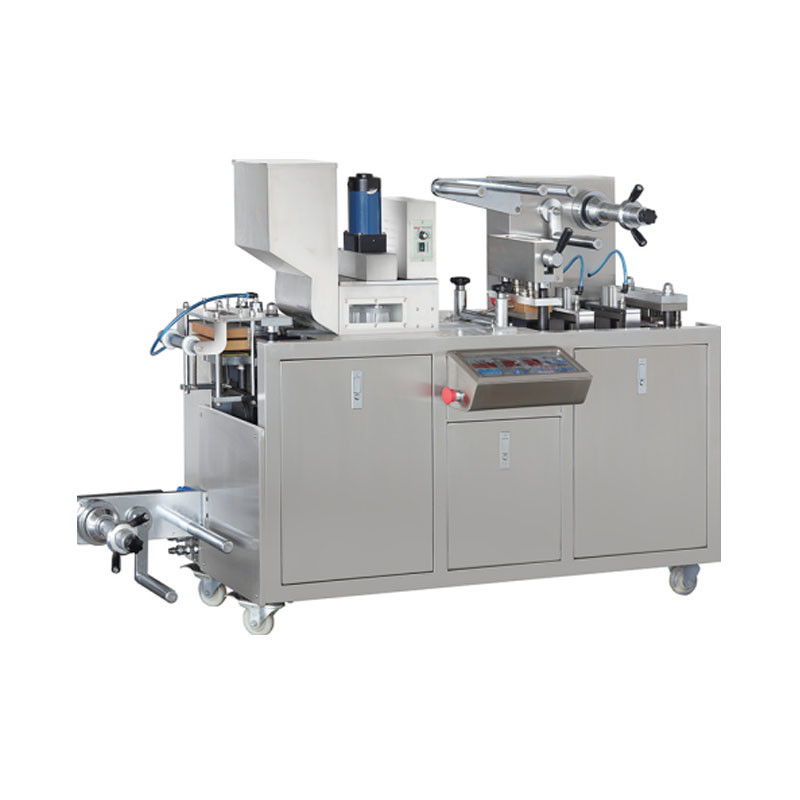

SED-120P-F Automatic Blister Packaging Machine is suitable for blister packaging of all kinds of solid material, such as capsule, tablets, etc., which can protect material from dust and moisture, and extend the shelf life of product.
This machine completes blister forming, material filling, heat sealing, batch number embossing, die cutting and finished product output in an automatic process. It is widely used in industries of food, pharmaceutical, medical instruments, hardware, electronics, etc. for automatic packaging.
Features
Work Process
Technical Parameters
| Model | SED-120P-F |
| Punch Frequency | 10-33 times/min |
| Capacity | 2400 plates/h |
| Max. Forming Area | 125x75mm |
| Max. Forming Depth | ≤15mm (standard) |
| 25mm (customized) | |
| Stroke Range | 30-80mm (can be designed as per user’s required) |
| Standard Plate Size | 80x57mm (can be designed as per user’s required) |
| Air Pressure | 0.4-0.6Mpa |
| Compressed Air Required | ≥0.3m3/min (Air compressor |
| Power Supply | 220V 1P 50HZ 2.8KW |
| Main Motor Power | 0.75KW |
| PVC Hard Sheet | (0.15-0.5)*125mm |
| PTP Aluminum Film | (0.02-0.035)*125mm |
| Dialysis Paper | (50-100g)*125mm |
| Mold Cooling | Tap water / Recycling water |
| Noise | <75dBA |
| Weight | Net weight: 415kg |
| Gross weight: 465kg | |
| Overall Dimension (LxWxH) | 1840x590x1100mm |
