Product Details:
|
| Name: | Horizontal Automatic Cartoning Machine | Applicable Cap: | Crown Cap |
|---|---|---|---|
| Applicable Bottle Diameter: | Φ 50-100mm (bottle Can Be Round Or Flat) | Applicable Height Of Bottle: | 10-350mm |
| Capacity: | 2000-5000 B.P.H | Electrical: | 380VAC 3Phase And 220 VAC Single Phase Power Supply (50 Hz) |
| Power: | 0.75KW | Machine Weight: | 600KG |
| Highlight: | equipment for pharmaceutical manufacturing,machinery for pharmaceutical industry |
||
Introduction

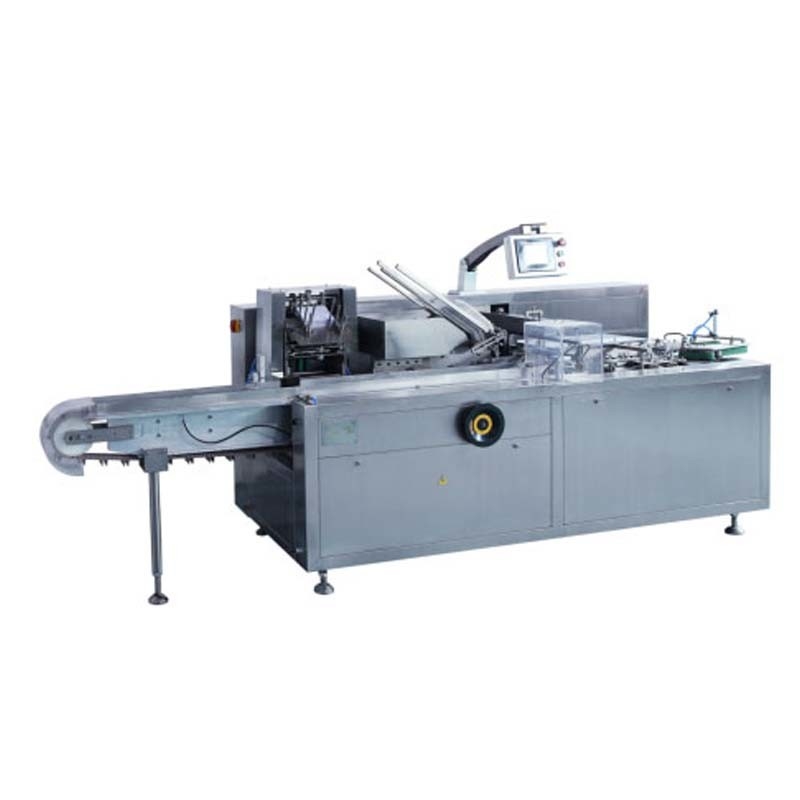

SED-120WZHG-A horizontal automatic cartoning machine is a high-tech product integrating light, electricity, gas and machinery. Suitable for ointment drugs (aluminum bottles and plastic bottles) and flexible packaging, pallet automatic packaging boxes. The working process is the delivery of items; the delivery of the drug instructions (automatic folding and stacking of 1-4 folds); the carton is automatically opened and delivered, and the materials are loaded with the folded instructions into the carton at the same time; and complete Complex packaging processes such as automatic batch numbering and paper tongue sealing at both ends. The appearance of the machine is all made of high-quality stainless steel casing, and innovative design is strictly in accordance with the requirements of the "GMP" standard in the pharmaceutical industry. The transmission part is designed with an overload protection function, and is equipped with an emergency stop device. The operating system adopts a man-machine interface video screen to ensure the personal safety of the operator.
Technical Parameters:
| Model | SED-120WZHG-A | |
| Encasing speed | 30-120 boxes /min | |
| Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
| Dimension range(L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification | (80-250)㎜×(90-170)㎜ | |
| Fold range | 【1-4】Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100㎜×1100㎜×1550㎜ | |
| Machine weight | 1400kg | |
