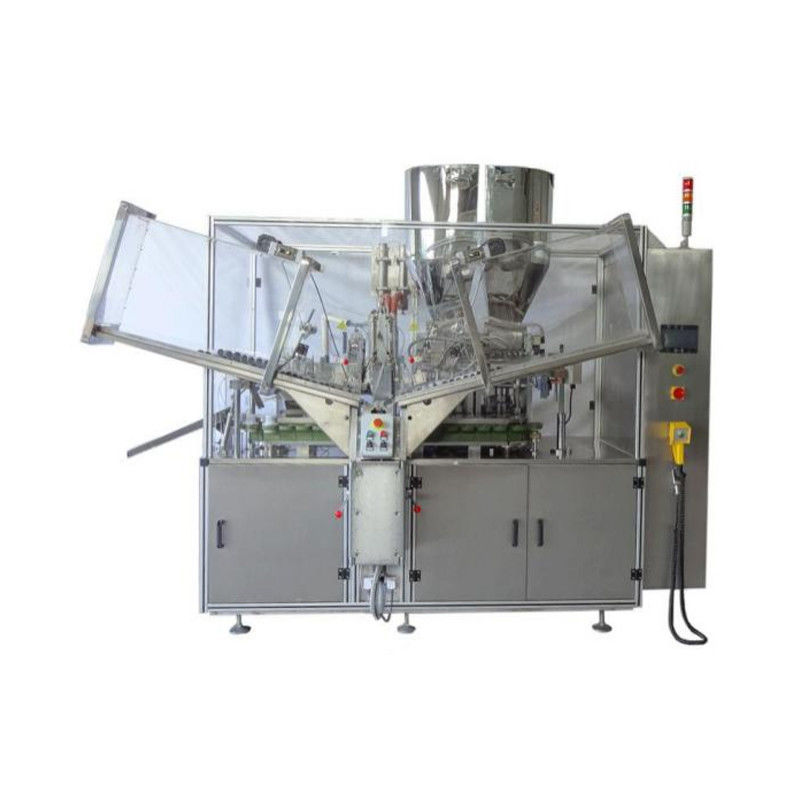

Product Details:
|
| Name: | High Speed Foodstuff Automatic Packing Machine Hose Filling And Sealing Machine | Tube Length: | 80-245mm |
|---|---|---|---|
| Tube Material: | Metal Tube, ALU Tube，Plastic Tube, Multiple Tube | Product Capacity(pc/h): | 100-140pc/min |
| Material: | Stainless Steel | Key Word: | Hose Filling And Sealing Machine |
| Highlight: | packaging automation equipment,automatic bagging machine |
||
Product Description of Hose Filling And Sealing Machine
This machine is suitable for operating filling, sealing a quantity of viscosity of oil, cream and gel etc ointment.
Product Parameters of Hose Filling And Sealing Machine
| Model | SED-140LGF-K |
| Tube material | Metal tube, ALU tube |
| Tube diameter | 12-50mm |
| Tube length | 80-245(customizable) |
| Filling accuracy | ≤±1% |
| Product capacity(pc/h) | 100-140pc/min |
Working Principle of Hose Filling And Sealing Machine
Automatic hose filling and sealing machine is designed for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.
It’s operating principle is to put the pipes which is in the feeder hopper into the first service position filling model individually, to invert with rotating disk, to test nomenclature plate in pipe when inverting to the second , to fill with nitrogen gas into pipe in the third, to fill with desired substance in the fourth, then to fix the heating, folding, jamming, number printing, cooling, slivers trimming etc service position, to export the finished products when inverting to the last service position so the twelfth.
Every pipe should take such series process to filling, sealing to completion.
Advantages of Hose Filling And Sealing Machine
1. Automatically finished overall process as tube supply, photoelectron register, inert gases filling (optional), material filling and sealing, batch number printing, finished products output.
2. Adjust position outlay and position numbers video picture, quickly and accurately adjustment ( suitable for varies specification and varies product producing )
3. Mechanical, photoelectron, electric, pneumatic intergrative controlling, reaches no tube no filling function; warning if tube error positioned or pressure too low, automatic stop machine if open the protective door.
Application of Hose Filling And Sealing Machine
