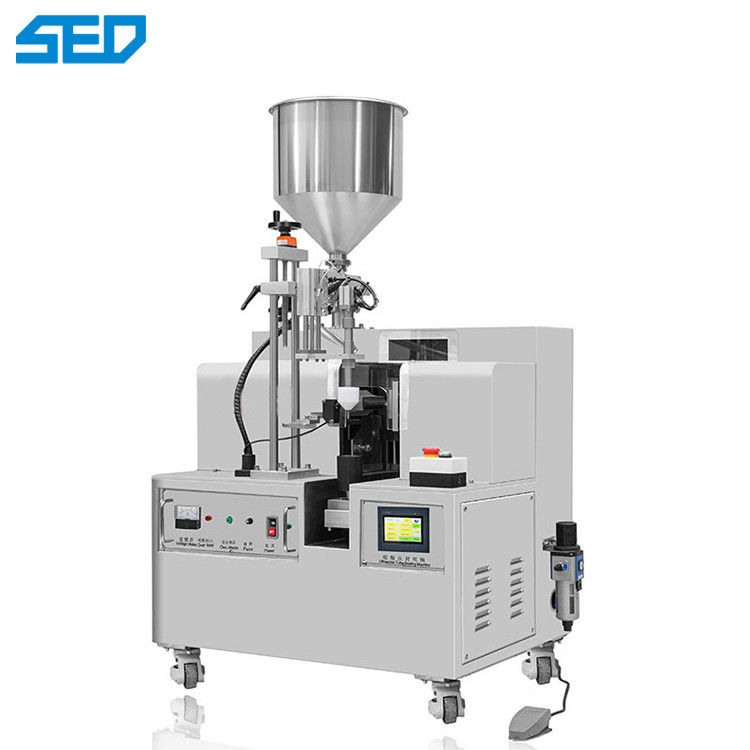

Product Details:
|
| Name: | Paste Automatic Packing Machine Ointment Hose Filling Sealing Machine | Filling&Sealing Speed: | 15-25pcs/min |
|---|---|---|---|
| Height Of Tube: | 50-250mm | Filling Capacity: | 25-250ml |
| Ultrasonic Frequency: | 20KHZ | Voltage: | AC220V/110V,50HZ/60HZ |
| Material: | Stainless Steel | Key Word: | Hose Filling Sealing Machine |
| Highlight: | packaging automation equipment,automatic bagging machine |
||
Product Description of Hose Filling Sealing Machine
It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
Extensional organization of the machine is made of aluminium alloy and stainless steel.
Product Parameters of Hose Filling Sealing Machine
| Filling&Sealing speed | 15-25pcs/min |
| Diameter of tube | 10-50mm |
| Height of tube | 50-250mm |
| Filling capacity | 25-250ml |
| Ultrasonic frequency | 20KHZ |
| Voltage | AC220V/110V,50HZ/60HZ |
| Power | 1800W |
| Size | 860*680*1550mm |
| Weight | 180kg |
main features of Hose Filling Sealing Machine
Auto Tube Orientation
Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube
Auto Cutting Function
It's with the function of automatically cutting after sealing and coding, in which guarantee the tube tail more beauty.
InportedAirTAC Solenoid Valve
Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.
1.It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
2.Extensional organization of the machine is made of aluminium alloy and stainless steel.
3.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.
4.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.
5.It's with the function of overload protection, phase difference protection, and power-fail protection
6.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.
7.It's with the function of automatically cutting.
8.Anti-leak filling nozzle deep into inside of hose, while there is a bottom-up filling process is complete when filling and sealing, no leakage or overflow. Machine is suitable for a variety of different physical and chemical properties of the filling material requirements.
Filling volume fine hand wheel placed in the external body, tight regulation and very convenient to ensure filling accuracy ≤ ± 1%, cost savings and truly accurate measurement.
Products Show of Hose Filling Sealing Machine
