Product Details:
|

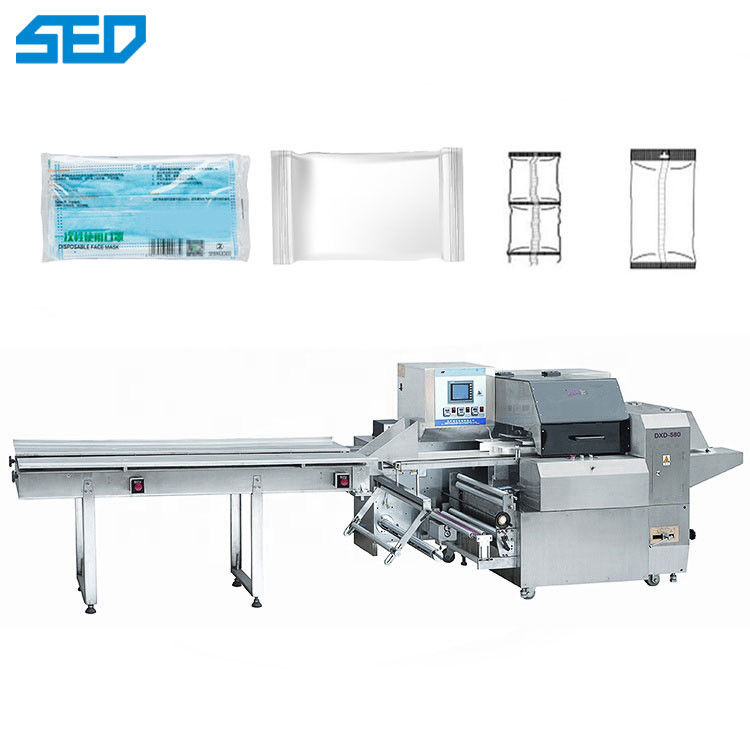

| Name: | Electric Automatic Face Mask Packing Machine PLC Touch Screen Operation | Max.Width Of Film(mm): | 300 |
|---|---|---|---|
| Max.Diameter Of Film(mm): | 350 | Bag Length(mm): | 50-450 |
| Bag Width(mm): | 25-110 | Oducts Height(mm): | Max.50 |
| Power: | 220V 50/60HZ 3KW | Material: | Stainless Steel |
| Key Word: | Face Mask Packing Machine | ||
| Highlight: | packaging automation equipment,automatic bagging machine |
||
Application
Food : cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers,etc.
Hardwares : hinge, stainless steel pipe, bearings , screw, nuts and washer, etc
Hotel Supplies : soap, disposable comb, Bath Cap, tooth paste and brush in one set.
Stationary : pencil, eraser, notebook, paper card, adhensivetape,etc.
Electric Products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : face mask, glove, gauze, capsule, disposable syringe.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, pacifier & nipple, bottles, napkin, baby diaper, etc.
main features of Packing Machine
1.PLC Touch screen operation, easy to operate and understand
2.High speed, connectable to various feeder line
3.Double frequency converter controller / servo motor for choice
4.Language: A. Chinese B. English
Product Parameters of Packing Machine
| Machine parameters | ||||||||
| Model |
ECHO -280 |
ECHO -300 |
ECHO -380 |
ECHO -420 |
ECHO -460 |
ECHO -580 |
ECHO -630 |
ECHO -660 |
|
Max.Width of film(mm) |
300 | 300 | 380 | 420 | 460 | 600 | 630 | 200 |
|
Max.Diameter of film(mm) |
350 | 350 | 300 | 300 | 300 | 300 | 350 | 390 |
| Bag Length(mm) | 50-450 | 60-400 | 90-450 | 90-450 | 100-220 | 130-600 | 250-450 | 80-180 |
| Bag Width(mm) | 25-110 | 35-100 | 40-140 | 40-140 | 40-100 | 80-200 | 10-60 | 15-30 |
| Products Height(mm) | max.50 | max.60 | max.60 | max.80 | max.80 | max.110 | 10-100 | 5-30 |
|
Packing Speed (bag/min) |
50-190
|
30-350
|
35-260
|
35-260
|
30-100
|
10-90
|
15-80
|
660 |
| Power |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3.3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 4KW |
3P/380V 50Hz 7KW |
|
Machine Size(mm) (L*W*H) |
3200 x1050 x1450
|
4200 x850 x1550
|
3500 x1000 x1500 |
4200 x1000 x1550 |
3800 x3200 x1500 |
4100 x1300 x1450 |
4000 x1250 x1500 |
6000 ×1300 ×1600 |
| Machine Weight | 750kg | 900kg | 700kg | 950kg | 1200kg | 900kg | 950kg | 1.5T |
| Bag Type | pillow bag,pillow bag with hole punch,pillow with euro slot,gussetedbag,etc | |||||||
Products Show of Packing Machine
