Product Details:
|
| Name: | Horizontal Automatic Packing Machine Pillow Type Flow Pack Machine | Packing Speed (bags/min): | 0-300 Bags/min |
|---|---|---|---|
| Packing Material: | Hot Sealing And Cool Sealing( PET+CPP, BOPP+CPP Similar Aluminzing Material. | Machine Dimension (mm): | 6220*1050*1520mm |
| Material: | Stainless Steel | Key Word: | Automatic Packing Machine |
| Highlight: | packaging automation equipment,automatic bagging machine |
||

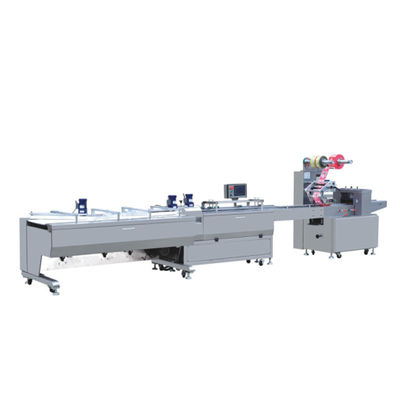

Horizontal Automatic Packing Machine Pillow Type Flow Pack Machine
Product Description of Packing Machine
SED-25ZB-S is suit for chocolate, cake, nougat,wafer, candy, coated goods and similar kinds of products’automatic feeding, arrange and packing. It used to achieve the automatic producing line.
Due to the good mechanical and design with servo motor control system, this machine is highly intelligence. In the maintenance and replace of the conveyor, it becomes more individuation.
Product Parameters of Packing Machine
Sealing cutters number:2
Sealing center distance: 90mm
Film cutting :80-180mm
The width of packaging: depends on size of products, have two option of shoulder
Packing speed: 0-300 bags/min
Material of film: hot sealing and cool sealing( PET+CPP, BOPP+CPP Similar aluminzing material.
voltage: 220v
total power: 5KW
Boundary dimension: 6220*1050*1520mm
Main features of Packing Machine
Automatic feeding system’s main-board is made of 10mm carbon steel to insure of the accuracy and stabilize of conveyor. The design is fully consider the convenience of replace conveyor and adjust the off tracking conveyor. Through the micro-switch to detect of conveyor’s off-tracking, and then use the air cylinder to redress the conveyor. Conveyor’s roller is used bunch of micro-bearing to reduce the R angle, it makes the connection of conveyor smoothly. This design make the delivery of products more accuracy, it is perfect solution of conveyor damage.
