Product Details:
|
| Name: | Automatic Packing Machine Tea Box Cellophane Overwrapping Machine | Production Efficiency: | 10-35 Cases/min |
|---|---|---|---|
| Power Supply: | 50HZ/AC380V | Motor Power: | 3.5KW |
| Specifications Of The Machine: | L(300-80)×W(200-50)×H(120-30)(mm) | Size: | 2000*1000*1400mm |
| Material: | Stainless Steel | Key Word: | Cellophane Overwrapping Machine |
| Highlight: | packaging automation equipment,automatic bagging machine |
||

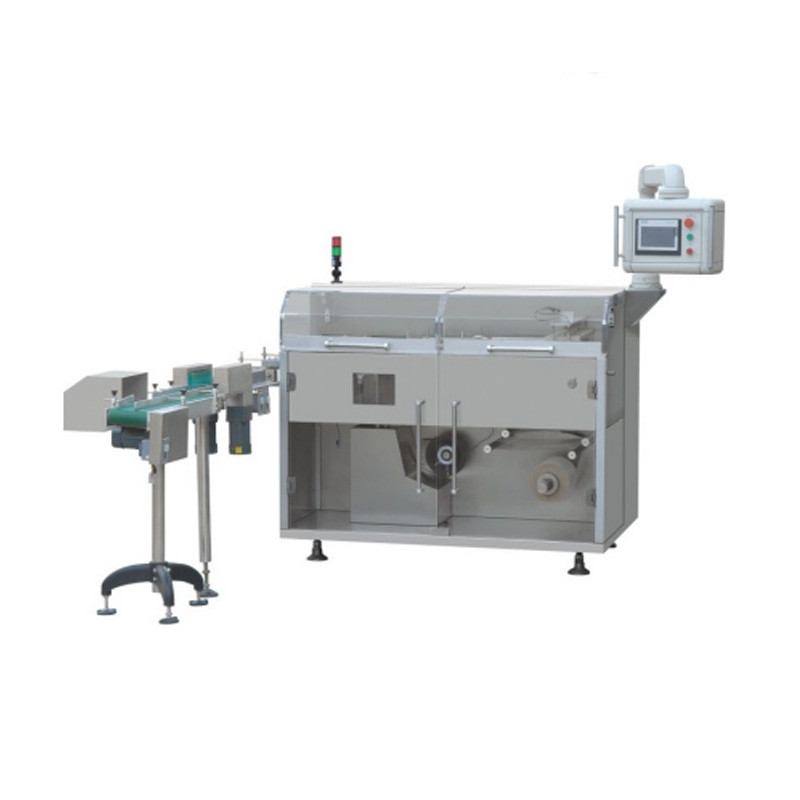

Product Overview of Packing Machine
This machine is suitable for overwrapping different specification of carton, box with cellophane or BOPP film, which is designed innovatively on the basis of introducing and absorbing the congeneric products advanced technology at home and abroad.
The main body of the machine is mechanical united structure. It introduces stepless frequency speed controller, automatic control and electrical accessory equipment. On the combination of machine, electricity and pneumatic parts, it has the features of stable and reliable operation, firm sealing, smooth surface and beautiful appearance.
This machine is widely used in the single case automatically packing of all kinds of products in medicine, healthcare products, nutricious foods, foods, cosmetic, stationery, audio & video products such as the wrapping and packing of medicine box, playing cards, scratchpads, cassettes, cigarette etc.
It has the characteristics of anti-forging, damp-proofing; anti-dusting, improving product additional value, improving product grade and improving decorative quality.
Product Parameters of Packing Machine
| Item.No | SED-300SWB-G |
| Production efficiency | 10-35 cases/min |
| Power supply | AC 380V 50HZ |
| Power | 3.5KW |
| Specifications of the machine | (L)2000*(W)1000*(H)1400mm |
| Weight | about 600KG |
| Air pressure | 0.3Mpa |
Main Feature of Packing Machine
1. The machine is controlled by PLC (servo motor submerged membrane is optional, but can not be synchronized with easy-to-pull wire).
2. Open door and shut down according to CE standard, which greatly improves the safety factor of the machine in use.
3. Packing speed is regulated by frequency conversion device. Packing speed can be changed according to different working requirements.
4. When the size and specifications of the package change, the machine only needs to change the mode(mold parts) and adjust it properly.
5. The heating plate of the seal is controlled by a micro-computer, which can be set by itself according to the change of the external environment. The heating temperature can be maintained within the set temperature range.
