Product Details:
|
| Name: | Industrial Vacuum Freeze Dryer For Grain | Power: | 380V/50HZ |
|---|---|---|---|
| Power Consumption: | 226Kw | Cooling Water Qty: | ≥100m3/h(T≤30℃/P=0.15-0.2Mpa) |
| Compressed Air: | ≥0.1m3/Min（P=0.5-0.8Mpa） | Clean Water: | ≥200L/Min（T=80℃/P≥0.4-0.5Mpa） |
| Defrost Water: | 2000Kg/Batch（T=60℃） | Whole Volume: | 8500*2700*5000 |
| Key Word: | Freeze Dry Machine | ||
| Highlight: | freeze drying equipment,freeze dryer lyophilizer |
||

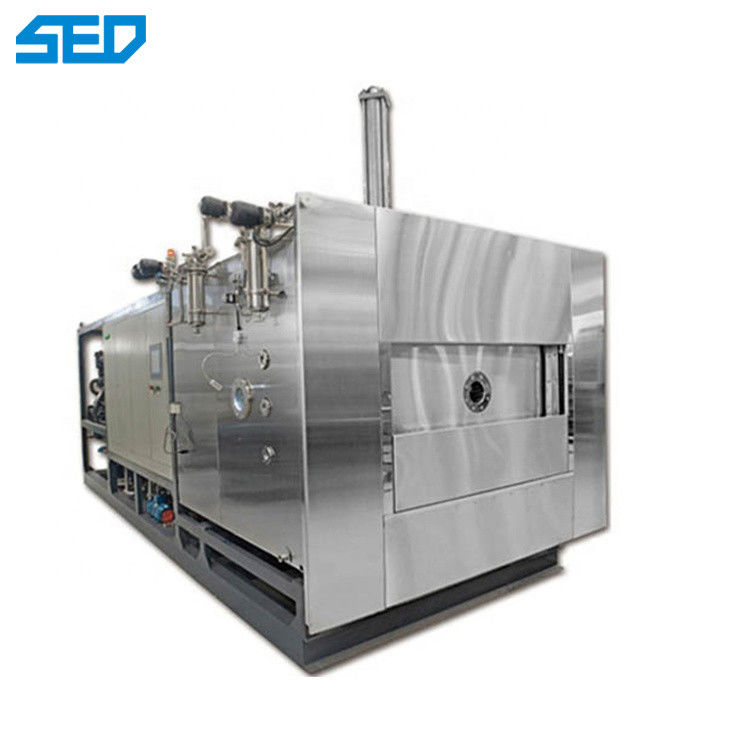

Industrial Vacuum Freeze Dryer For Grain
Product Parameters of Freeze Dry Machine
|
Product structure |
Technical parameters |
Remarks |
|
| CGMP | |||
| ※ public distribution | |||
|
Power (three-phase and five-wire system) |
380V/50HZ | ||
| Power consumption | 226Kw | ||
| Cooling water qty | ≥100m3/h(T≤30℃/P=0.15-0.2Mpa) | ||
| Compressed air | ≥0.1m3/Min(P=0.5-0.8Mpa) | ||
| Clean water | ≥200L/Min(T=80℃/P≥0.4-0.5Mpa) | ||
| Defrost water | 2000Kg/Batch(T=60℃) | ||
|
Whole volume |
8500*2700*5000 |
(According to design standard) |
|
| Structure |
Integral (Rectangular box dry +Rectangular cold trap) |
||
| Total weight | 25000kg | ||
Feature of Freeze Dry Machine
● High freeze-drying efficiency and short the freeze-drying time.
● Double-sided radiation heating, good temperature uniformity.
● High heat exchange efficiency and long service life.
● Have the drying curve optimization control algorithm.
● Have the strong ice catching ability and high drying efficiency.
● High control accuracy.
● Can save multiple sets of process recipes, and have the process optimization rate
.
● Flexible manual + automatic control mode, manual groping process, and automatic batch production.
● Can record, save up to ten years of operating data, curves and alarm records.
● Non-standard freeze dryers can be customized as requested.
Product Details
Application of Freeze Dry Machine
Food industry: dried vegetables, meat, fish, condiments, convenience foods and specialty products, etc. Preserves the original fresh look, smell, taste, shape of food. Freeze-dried products fully restore moisture, can be stored for longer periods more easily, and are less expensive to ship.
Nutrition and health care industry:
Vacuum freeze-dried products such as royal jelly, ginseng, soft-shelled turtle and rain worm make the final product more natural and authentic.
Pharmaceutical industry:
Vacuum freeze-drying can be used for the drying of Chinese and Western leeches such as serum, plasma, bacteria, enzymes, antibiotics, hormones, etc.
Biomedical Research:
Vacuum freeze-drying can store blood, bacteria, arteries, bones, skin, cornea, nerve tissue and organs for a long time, and can fully restore moisture and regeneration.
