Product Details:
|
| Name: | High Speed Automatic Spray Drying Machine | Rotary Speed (r/min): | 300-350 |
|---|---|---|---|
| Thickness Of Iron Sheet Thickness: | 2 | Dimensions(mm): | 1200x1100x2350 |
| Material: | Stainless Steel | Key Word: | Automatic Drying Machine |
| Highlight: | dryers used in pharmaceutical industry,fluid bed dryer granulator |
||
Product description of Spray Dryer
The Drying Machine is suitable for Dry mixing of plastic pellets,Masterbatch , pulverized materials and plastic sheet materials.

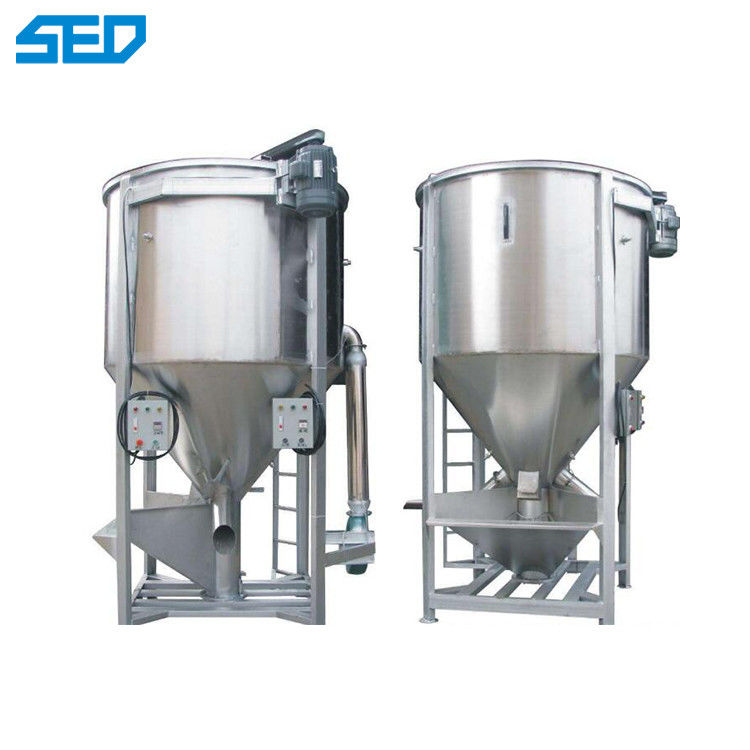

The vertical mixer uses the rapid rotation of the screw to raise the raw material from the bottom of the barrel from the center to the upper part, then scatters it in an umbrella shape and returns it to the bottom, so that the raw materials can be tumbling up and down in the barrel, and a large amount of raw materials can be evenly distributed in a short time. The mix is complete.
Main Parameter of Spray Dryer
| Model | Rx-500 | Rx-1000 | Rx-1500 |
| Main motor (kw) | 3 | 4 | 5.5 |
| Mix volume(KG) | 500 | 1000 | 1500 |
| Blower Power (kw) | 1.1 | 1.5 | 2.2 |
| Heating power (kw ) | 12 | 15 | 18 |
| Thickness of Iron Sheet thickness | 2 | 2 | 2 |
| Rotary Speed (r/min) | 300-350 | 300-350 | 300-350 |
| Spiral mixing blade thickness(mm) | 3 | 3 | 3 |
| Dimensions(mm) | 1200x1100x2350 | 1500x1500x2800 | 1700x1700x3100 |
| Weight(KG) | 500 | 950 | 1200 |
Main Features of Spray Dryer
1. The machine occupies a small area, low energy consumption, large capacity, labor saving, convenient control, saving time and effort, and the mixing effect is quick and even. The screw is used for feeding, and the feeding is convenient. The workers directly stand on the ground to feed (the fan can also be used to directly feed the plastic particles into the barrel from the pelletizer).
2, vertical design, easy to operate, easy to maintain.
3. The materials in contact with the raw materials are made of stainless steel, which is easy to clean and avoid rust.
4, stirring and drying synchronization, because the material is in the process of drying, continue to maintain the flow state, heat penetration is uniform, drying time is short and not easy to knot;
5, more models, large capacity, always have a performance loading: 300kg to 8T.
6, heating type machine dry mixing function two in one, when there is no need to dry, just turn off the heating switch and fan switch, you can use it for plastic mixing and homogenization purposes, one machine and two.
7, automatic operation timing, overload protection, feeding limit alarm and other functions; protection devices to ensure safe operation.
8, can be widely used in plastic sheet material, pulverized materials, powder materials, plastic granules, plastic new and old materials and added color masterbatch evenly used, etc.
Application advantages of Spray Dryer
1. The drying speed is fast, and the surface of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated instantly, and it only takes ten to ten seconds to complete the drying step. Suitable for drying heat-sensitive materials;
2. The products obtained by drying are spherical particles with uniform particles, good fluidity, good solubility, high product purity and good quality;
3. Wide range of applications, users can choose to use hot air drying and cold air granulation according to the characteristics of the material, which has strong adaptability to the material.
4. The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.
Application of Spray Dryer
