Product Details:
|
| Name: | Lab Use High Efficiency Egg Powder Spray Dryer Pharmaceutical Dryers | Precision Of Temp: | ±1 |
|---|---|---|---|
| Dryer Time: | 1.0 ~ 1.5 | Spray Direction: | Downwards Co-current |
| Heat Source: | Electric | Air Compressor: | Built-in Oil-free Air Compressor |
| Material: | Stainless Steel | Key Word: | Spray Dryer Machine |
| Highlight: | dryers used in pharmaceutical industry,fluid bed dryer granulator |
||
Product Overview of Spray Dryer Machine
Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Product Parameters of Spray Dryer Machine
| Item | Unit | TP-S15 | TP-S30 | TP-S50 | TP-S100 |
| Max capacity | ml/h | 1500-2000 | 3000 | 5000 | 10000 |
| Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30°C ~ 300°C Adjustable | 140°C ~ 300°C Adjustable |
50℃ ~ 300℃ |
| Temperature range of outlet air | ℃ | 80℃ ~ 90℃ | 30°C ~ 140°C | 80°C ~ 90°C | 80℃ ~ 90℃ |
| Spray system | / | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle |
| Precision of temp | ℃ | ±1 | |||
| Dryer time | S | 1.0 ~ 1.5 | |||
| Speed of squirt pump | ml/h | 50-2000 | 3000 | 5000 | 10000 |
| Spray direction | / | Downwards co-current | |||
| Heater Power | / | 3.5KW | 4.5KW | 6.8KW | 2.8KW |
| Total power | / | 4.5KW 220V | 5.5KW 220V | 9KW,380V | 3.2KW 380V |
| Heat source | / | Electric | |||
| Air compressor | / | Built-in oil-free air compressor | |||
| Dried powder restoring rate | % | ≥95 | ≥98 | ||
| Dimension | mm | 940*850*1500 | 880*980*1550 | 1800*930*2200 | 2500*1600*2800 |
| Maximum moisture evaporation | Kg/h |
2 | 3 | 5 | 10 |
Feature of Spray Dryer Machine
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

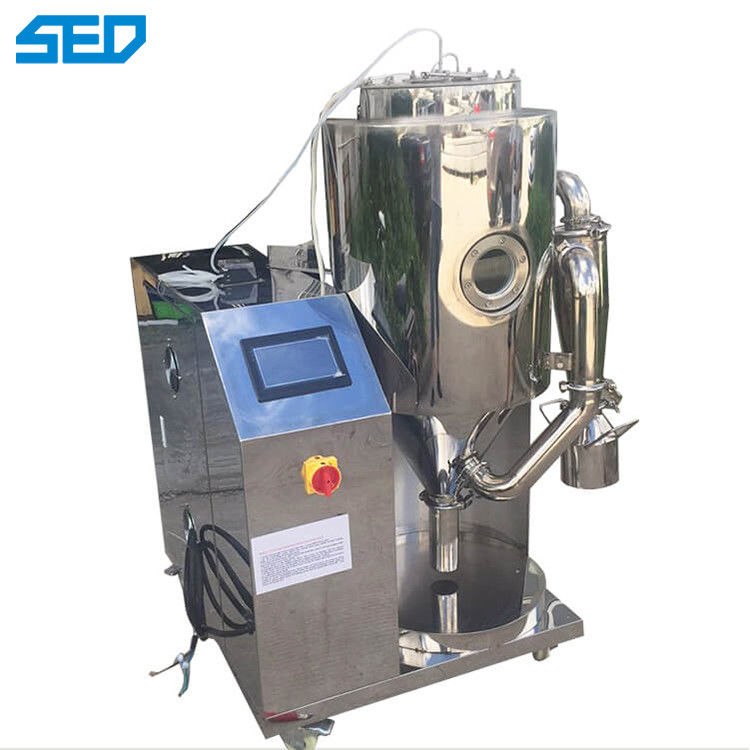

Show of Spray Dryer Machine
Application of Spray Dryer Machine
