Product Details:
|
| Name: | Ampoule Filling And Sealing Machine For 5-10ml Ampoule Filling | Filling Volume: | 5-10ml |
|---|---|---|---|
| Production Capacity: | 6000-8000 Bottles/hour | Total Motor Power: | 0.75kw |
| Material: | Stainless Steel 304 | Dimensions: | 1650*1100*1300mm |
| Highlight: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |
||
Machine Parameters
| Name | Ampoule Filling and Sealing Machine |
| Model | SED-4AGL-10-C |
| Filling volume | 5-10 ml |
| Production capacity | 6000-8000 bottles/hour |
| Total motor power | 0.75kw |
| Material | Stainless steel 304 |
| Dimensions | 1650*1100*1300mm |
| Packing size | 1800x1300x1500mm |
| Gross weight | 500kg |
Performance and introduction:

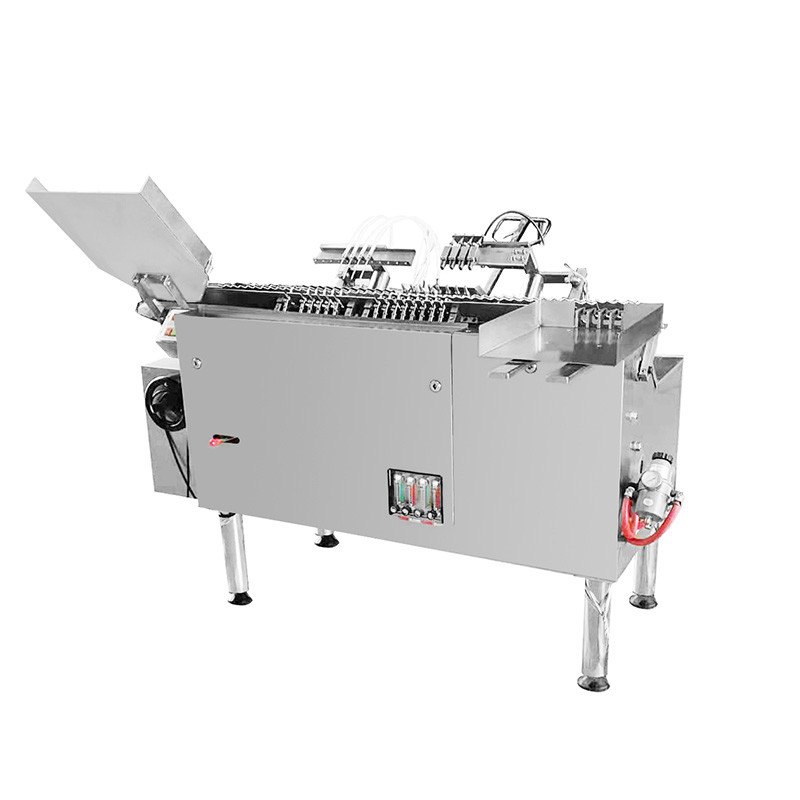

It is suitable for ampule filling and sealing in pharmaceutical factories. This machine has a 4-station stepping transmission system. Four bottles are used as a group at a time, and they are sent to each point separately to complete the separation and delivery of bottles. The machine consists pre-filling with nitrogen, material filling, filling with nitrogen, preheating, sealing and other processes.
Features Introduction
It has the cast steel rotating cam, which is very hard and not easy to break down. The machine with low oxygen and gas consumption, and reduces the production cost.
