Product Details:
|
| Name: | Automatic Cartoning Machine For Pharmaceutical | Encasing Speed: | 30-120 Boxes /min |
|---|---|---|---|
| Power Supply: | 220V 50HZ | Main Motor Power: | 0.75kw |
| Machine Dimension(L×W×H): | < 1% | Motor Power: | 3100㎜×1100㎜×1550㎜ |
| Machine Weight: | 1400kg | Key Word: | Automatic Cartoning Machine |
| Highlight: | machinery for pharmaceutical industry,equipment for pharmaceutical manufacturing |
||
Introduction

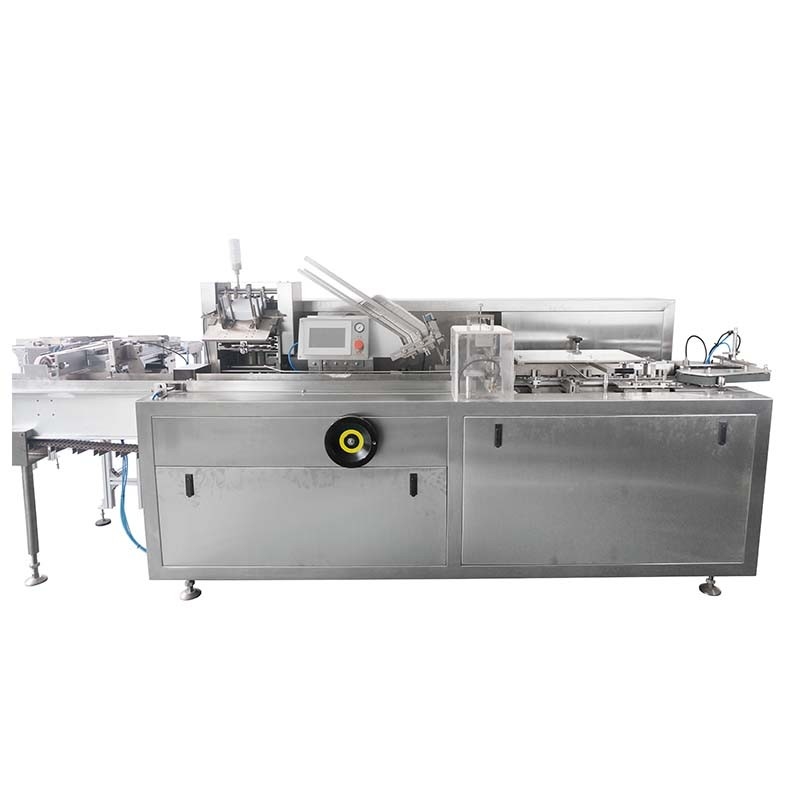

SED-120WZH-A automatic horizontal cartoning machine is a high-tech product integrating light, electricity, gas and machinery. Suitable for automatic boxing of blister-shaped capsules, tablets, blister plates with aluminum-plastic packaging and similar items.
The working process is the conveyance of medicine boards or articles (one board at a time occupies multiple boards and adjustable); the transmission of medicine leaflet (automatic folding and stacking of 1-4 folds can be carried out); the carton is automatically opened and conveyed, and put the medicine board together with the folded leaflet into the carton at the same time; and the complicated packaging process such as automatic batch numbering and paper tongue sealing at both ends is completed. The appearance of the machine is all made of high-quality stainless steel casing, the working surface is closed by plexiglass doors and windows, and the innovative design is strictly in accordance with the requirements of the "GMP" standard in the pharmaceutical industry. The transmission part is designed with an overload protection function, and is equipped with an emergency stop device. The operating system adopts a man-machine interface video screen to ensure the personal safety of the operator.
Features:
1. Automatically reject lacking of package product and leaflet.
2. When there is no product or the product supply is not in place, the machine will idle without pushing the product. When the product is restored to supply, it will run automatically, and the product will stop automatically when the box is not in place.
3. It is convenient to change different product specifications;
4. Automatically stop when machine is overload.
5. Automatically display the boxing speed and counting.
Technical Parameters:
| Model | SED-120WZH-A | |
| Encasing speed | 30-120 boxes /min | |
| Box | Quality requirement | 250-350g/㎡【Base on carton size】 |
| Dimension range(L×W×H) | (70-180)mm×(35-85)mm×(14-50)mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification | (80-250)㎜×(90-170)㎜ | |
| Fold range | 【1-4】Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100㎜×1100㎜×1550㎜ | |
| Machine weight | 1400kg | |
