Product Details:
|
| Name: | Multifunction Capsule Blister Packaging Machine For Pharmaceutical Industry | Punch Frequency: | 10-33times/min |
|---|---|---|---|
| Production Capacity: | 1980plates/hour | Max. Forming Area & Depth: | 130x80(standard Depth ≦15mm), Max. Depth 25mm( As Adjusted |
| Standard Stroke Range: | 30-80mm(can Be Designed As Per User’s Required) | Standard Plate Size: | 80x57mm (can Be Designed As Per User’s Required) |
| Air Pressure: | 0.4-0.6Mpa | Compressed Air Required: | Air Compressor≥0.3m3/min |
| Key Word: | Blister Packing Machine | ||
| Highlight: | blister packaging equipment,blister tablet packaging machines |
||

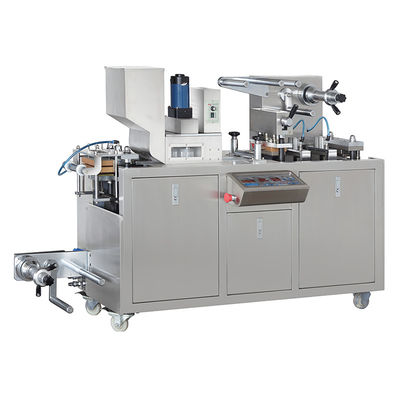

Multifunction Capsule Blister Packaging Machine For Pharmaceutical Industry
Product Overview of Blister Packing Machine
automatic pack blister packaging sealing filling machine
Product Parameters of Blister Packing Machine
|
Model |
SED-120P-F |
|
Punch frequency |
10-33times/min |
|
Production capacity |
1980plates/hour |
|
Max. Forming area & Depth |
130x80(standard depth ≦15mm), Max. Depth 25mm( As adjusted |
|
Standard Stroke range |
30-80mm(can be designed as per user’s required) |
|
Standard plate size |
80x57mm (can be designed as per user’s required) |
|
Air pressure |
0.4-0.6Mpa |
|
Compressed air required |
Air compressor≥0.3m3/min |
|
Total power supply |
220V 50Hz 2.4Kw |
|
Main motor |
0.75Kw |
|
PVC hard Film |
0.15-0.5*110毫米(mm) 0.15-0.5*110 (mm) |
|
PTP Aluminum film |
0.02-0.035*110 (mm) |
|
Dialysis Paper |
50-100g*110毫米(mm) 50-100g*110(mm) |
|
Mould cooling |
Tap water or Recycling water |
|
Overall Dimension |
1900mmx600x1100 (mm)(LxWxH) |
|
Weight |
Net 425kg Gross weight: 475kg |
|
Noise index |
<75dBA |
Feature of Blister Packing Machine
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
5. The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Application of Blister Packing Machine
