Product Details:
|
| Name: | High Efficiency Liquid Blister Packaging Machine For Foodstuff | Punch Frequency: | 10-20times/min |
|---|---|---|---|
| Production Capacity: | 2400plates/hour | Max. Forming Area & Depth: | 105x70(standard Depth ≦15mm), Max. Depth 25mm( As Adjusted |
| Standard Stroke Range: | 30-80mm(can Be Designed As Per User’s Required) | Standard Plate Size: | 80x70mm (can Be Designed As Per User’s Required) |
| Air Pressure: | 0.4-0.6Mpa | Key Word: | Blister Packaging Machine |
| Highlight: | blister packaging equipment,blister tablet packaging machines |
||

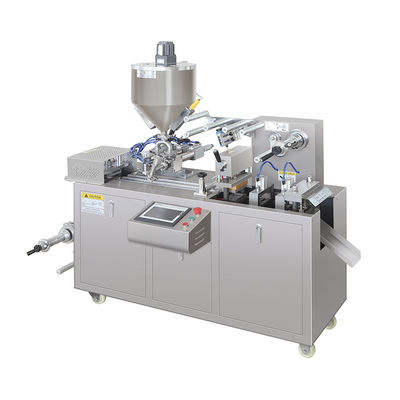

High Efficiency Liquid Blister Packaging Machine For Foodstuff
Product introduction of Blister Packaging Machine
Automatic Blister Paper Card Packing Machine can form blisters, filling (optional), sealing blisters to ready-made cards automatically.
It is flexible and has high packing capacity for large runs.
Blisters are the ideal form of packaging for consumer and industrial products. The perfect combination of complete product visibility on one side and printed information on the other side of the packaging helps consumers and users find what they are looking for quickly and easily.
Main Parameter of Blister Packaging Machine
|
Model |
SED-80P1-F |
|
Punch frequency |
10-20times/min |
|
Production capacity |
2400plates/hour |
|
Max. Forming area & Depth |
105x70(standard depth ≦15mm), Max. Depth 25mm( As adjusted |
|
Standard Stroke range |
|
|
Standard plate size |
80x70mm (can be designed as per user’s required) |
|
Air pressure |
0.4-0.6Mpa |
|
Compressed air required |
Air compressor≥0.3m3/min |
|
Total power supply |
220V 50Hz 2.8Kw |
|
Main motor |
0.75Kw |
|
PVC hard Film |
0.15-0.5*110 (mm) |
|
PTP Aluminum film |
0.02-0.035*110 (mm) |
|
Dialysis Paper |
50-100g*110毫米(mm) 50-100g*110(mm) |
|
Mould cooling |
Tap water or Recycling water |
|
Overall Dimension |
1840x900x1300 (mm)(LxWxH) |
|
Weight |
Net 480kg Gross weight: 550kg |
|
Noise index |
<75dBA |
Main features of Blister Packaging Machine
1) It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2) Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3) Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
4) Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
5) The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Application of Blister Packaging Machine
