Product Details:
|
Name: | Adjustablet Electronic Automatic Horizontal Cartoning Machine | Project / Model: | SED-120 |
---|---|---|---|
Speed: | 50-100BOX/ Minute | Quality Requirement: | 250-450g/m3 |
Air Consumption: | 120-160L/min | Overall Dimensions: | About 3170×1260×1750 Mm |
Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
Highlight: | auto cartoner machine,vertical cartoning machine |
automatic horizontal blister cartoning machine, with the United States Bonner vision inspection systems, real-time monitoring of materials filling and case filling incomplete version of the drug material defects were excluded to ensure that qualified packaged goods, the production line can also increase the packing machine, three-dimensional transparent film packaging machines.
Product Parameters of Cartoner Packaging Machine
Project / Model | SED-120 | |
Speed | 50-100BOX/ Minute | |
Box dimension range | L(50-230)mm×W(20-90)mm×H(15-70)mm | |
Quality requirement | 250-450g/m3 | |
instructions | Quality requirements | 60-70g/m2 |
Unfolded size range | (80-250)X(90-170)mm | |
Folding range | (1-4)fold | |
Main motor power | 1.5KW 380V 50Hz | |
Machine noise | ≤80dB | |
Air | 0.5-0.8 Mpa | |
Air consumption | 120-160L/min | |
Overall dimensions | About 3170×1260×1750 mm | |
Weight | 1200Kg |
Advantages of Cartoner Packaging Machine
1.The use of automatic feeding, out of the box, into the box, batch number, sealing boxes and rejection and other forms of packaging, compact structure, simple operation and adjustment;
2. servo / stepper motor and touch screen, PLC programmable control system, man-machine interface displays clearer and easy operation, high degree of automation, more humane;
3. the use of photoelectric eye automatic detection and tracking systems, air bag case less than the maximum savings of packaging materials;
4. packaging range, easy to adjust, enabling fast switching between a variety of sizes;
5. Replace the specifications without changing the mold, can be realized simply adjust, PLC automatically display speed and finished products counting
6.the use of goods into the box is not in place automatic shutdown and main drive motor overload protection device for more secure and reliable;
7. according to customer requirements, using the turn-style security shield, easy to operate, beautiful appearance.
8. with plastic packaging machine, pillow packing machine, three-dimensional packaging machines, bottling line, filling machine, labeling machine, inkjet printer, said meter line, other production lines and other equipment to achieve linkage of production;
9.can be designed into a variety of automatic under the feeder and cartridge system according to the requirements of the packaging;
10. according to customer requirements matching melters using hot melt glue sealing box and mechanical seal gluing box.

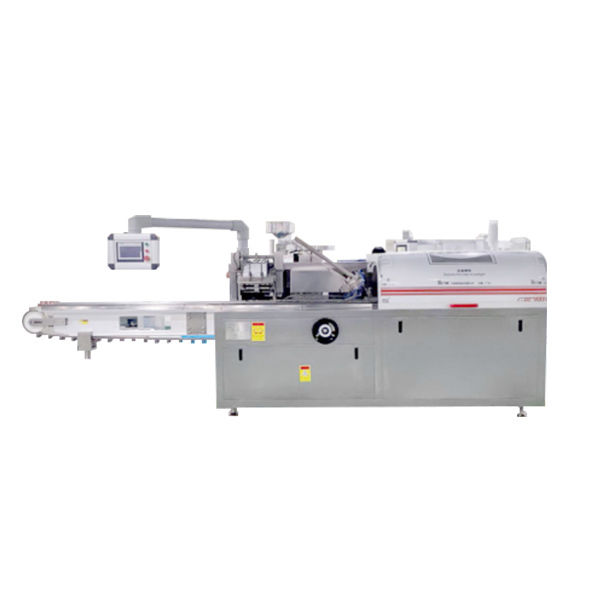

Products Show of Cartoner Packaging Machine
Application of Cartoner Packaging Machine
