Product Details:
|

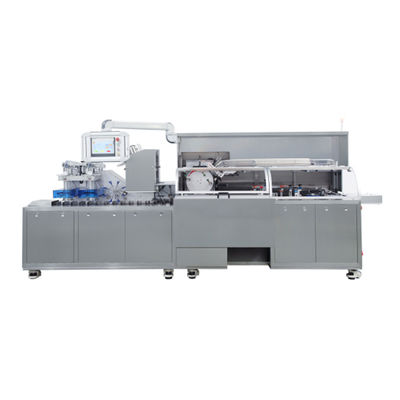

| Name: | Skin Care Products Facial Mask Auto Cartoner Machine Packaging Line Low Noise | Power Supply: | 220V 50HZ |
|---|---|---|---|
| Motor Power: | 4kw | Dimension: | 4400x1500x1750mm |
| Weight: | 3500kg | Temperature: | 20±10℃ |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||
Product Description of Cartoning Machine
This product is suitable for packing all kinds of granular bags, powder bags, blades and other similar items in boxes, multiple bags and multiple boxes in one box.
It has automatic user manual folding, automatic carton opening, object packaging, batch number printing and box sealing and other functions.The machine can be used alone or in combination with other equipment to form a production line.
Main Feature of Cartoning Machine
The machine is in horizontal type, continuous transmission, stable operation and high speed. It is suitable for the packaging of medicine, food, cosmetics, daily chemicals and other industries such as blister, bottles, tubes, soaps, etc. Its performance characteristics are as follows:
1. It can automatically complete the folding of the leaflet, carton loading, opening, material packing, batch number printing, sealing and output. It can also be equipped with a hot melt adhesive machine to complete the hot melt sealing.
2. It is equipped with a leaflet folding machine. The leaflet storage rack of the folding machine can hold 1400-1600 sheets, which greatly reduces the labor intensity. It’s with up and down limit detection.
3. The machine is controlled by Siemens PLC and uses sick eye mark to monitor the movement of each part. If there is an abnormality during operation, it can automatically stop and display the cause, so as to eliminate the fault in time.
4. With the human-machine interface, all operating parameters and system information will be displayed on the screen, the operation status is clear at a glance, and the production efficiency is improved. The simple operation performance can reduce the training time.
5. The machine is equipped with Baker vacuum pump and SEW main motor. The SEW motor is equipped with a torque overload protector, which can realize the separation of the main drive motor from each transmission part in the case of overload to ensure the safety of the whole machine.
6. The machine is equipped with an intelligent detection device. The packaging process adopts the principle of packaging priority. When there is no product, it does not feed the leaflet, does not load the box, and does not pack product into the box, so as to ensure the qualified rate and reduce the waste of packaging materials. In the latter part of the detection process, the leaflet in the phosphor powder detection box and the materials in the metal detection box are configured, and the waste products (without blister or leaflet) are rejected at the exit to ensure that the product quality fully meets the qualified requirements.
7. The machine can be used alone or be linked to upstream machine such as blister packing or tube filling to make a complete production line.
8. The machine can change the packing specifications according to the different requirements of projects, and it is easy to adjust and debug. It is suitable for the production of a single variety in large batches, and at the same time, it can meet the production of small batches of multiple varieties.
9. For more performance characteristics, see the diagram below.
Product Parameters of Cartoning Machine
| Power Supply |
AC380V 3-phase 4-wire system power supply 50HZ Total power rate 4kw |
| Machine Size(L×H×W)MM | 4400×1500×1750 |
| Weight(KG) | 3500kg |
| Performance |
main drive performance 200 boxes/min folder performance 200 sheets/min |
| Air consumption | 2 m3/h(Pressure0.5-0.7 MPa) |
| Box packing range |
Specification of box:250-350 g/m2(depending on the size of the carton) Size:Max. Size of box(L×W×H) 190×87×55 mm Min. Size of box(L×W×H) 65×28×15 mm |
| temperature: | 20±10℃ |
| Compressed air: | ≥0.6ＭＰa Flow rate ≥20m3／h |
Application of Cartoning Machine
The automatic cartoning machine is suitable for the packaging of blisters, bottles, vials, pillow bags, toothpaste, etc. in the industries of medicine, food, daily chemicals, hardware and electrical appliances.
