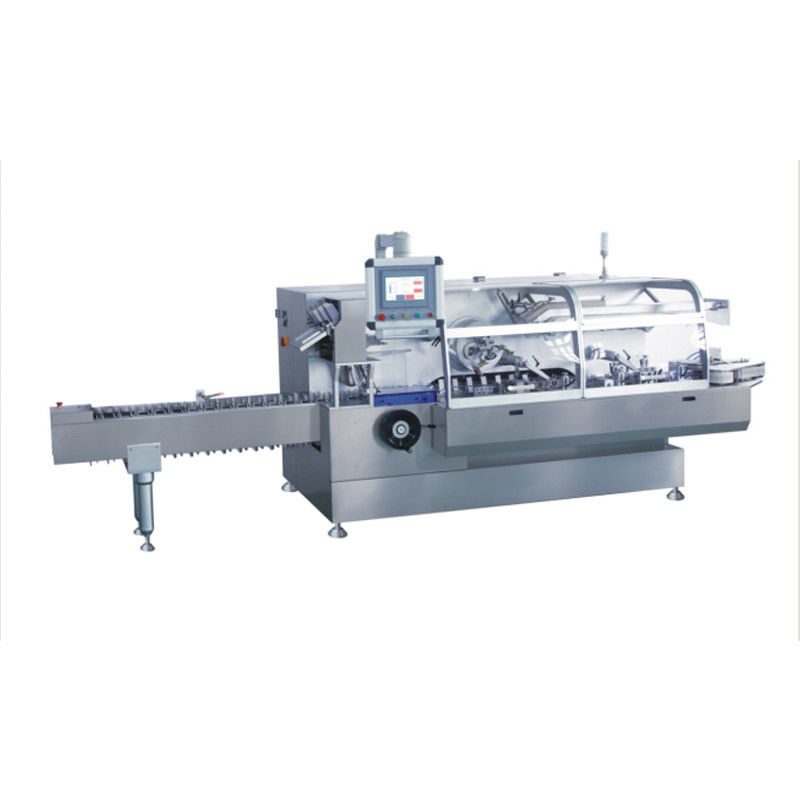

Product Details:
|
| Name: | CE Medicine Horizontal Cartoning Machine Packaging Line Customizable | Power: | 220V/50Hz |
|---|---|---|---|
| Motor Power: | 0.75kw | Machine Dimension(L×W×H): | 6800mm×1600mm×1860mm |
| Machine Weight: | 3400kg | Air Consumption: | 450L/min |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||
Product Description of Cartoning Machine
electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device.
The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain.
Main Feature of Cartoning Machine
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .
Product Parameters of Cartoning Machine
| Mechanical speed: | Mechanical speed up to 260 Carton/min |
| Quality requirement for the carton: | 250-350g/m2 Base on carton size |
| Industrial PLC control: | Siemens (Germany) |
| HMI touch screen: | Siemens (Germany) |
| Electrics: | 220/50/3pH, N |
| Power Consumption: | 5 kW/hr |
| Compressed Air: | 6 kg/cm2 |
| Air Consumption: | 450 NL/min |
| Overall dimensions: | 6800 x 1600 x 1860 mm (L x W x H) |
| Weight: | 3400 kgs (approx.) |
Application of Cartoning Machine
The automatic cartoning machine is suitable for the packaging of blisters, bottles, vials, pillow bags, toothpaste, etc. in the industries of medicine, food, daily chemicals, hardware and electrical appliances.
