Product Details:
|
| Name: | Hardware Auto Parts Vertical Cartoning Machine Non - Standard Customizable | Packaging Dimension(mm): | L(70-200)*W(35-75)*H(15-70)mm |
|---|---|---|---|
| Packaging Speed: | 60-200 Boxes/min | Total Power: | 5KW |
| Voltage: | 380V/50Hz | Weight(about): | 3000KGS |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||

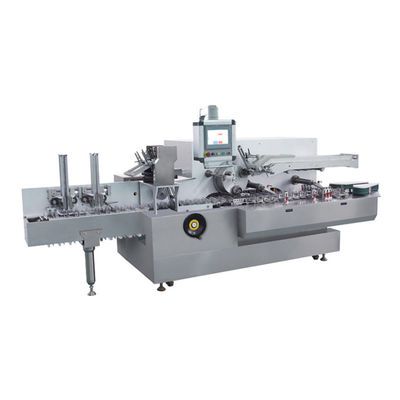

Product Description of Cartoning Machine
High speed box cartoning machine is new model which innovation design base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry "GMP" standard to manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes operation and maintenance more convenient; three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely This model is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line.
Product Parameters of Cartoning Machine
| Specification of machine(mm) | 1300(L)×1200(W)×1550(H) |
| Packaging dimension(mm) | (L)60-120×(W)28-80×(H)28-55 |
| Packaging speed | 40-100(cases)/(min) |
| air consumption | 5-8L/Min |
| total power | 1.5KW |
| voltage | 220V/50Hz |
| Weight(about) | 950kg |
Main Feature of Cartoning Machine
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton.
6. Automatic detection and rejection device for lacking blister goods and leaflets.
7. Protecting automatically for overloading.
8. stable performance , operation is easy.
Application of Cartoning Machine
