Product Details:
|

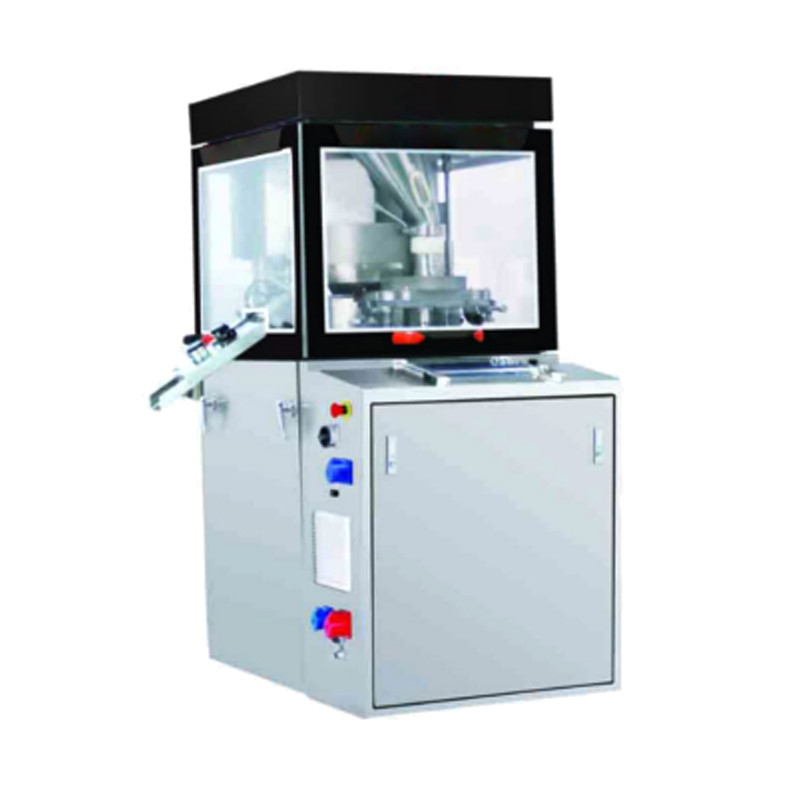

| Name: | High Quality High Speed Tablet Press Machine | Model: | SED-370-26GY-P |
|---|---|---|---|
| Dimension(mm):: | 1080*1440*1950 | Tooling Type: | EU D |
| MaxOutput (pcs/h): | 171000 | Rotary Speed Of The Turret (rpm): | 11 |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | tablet press equipment,pill press machine |
||
CNC Lozenge Single Punch Tablet Press Machine Experimental Type Long Life
Product description of Tablet Compression Machine
High quality is based on the advanced and reasonable design. The combinationof rich experience for tablet press manufacturing and modern technologygenerated the new design philosophy, the High SpeeoTablet Press realized standardization, modularity and serialization.
Product Parameters of Tablet Compression Machine
| Numberof Stations | 26 | 32 |
| Tooling Type | EU D | EU B |
| MaxOutput (pcs/h) | 171000 | 211000 |
| Max.Tablet Diameter(mm) | 25 | 16 |
| MaxFilling Depth (mm) | 20 | 16 |
| MaxTablet Thickness(mm) | 10 | 8 |
| MaxMain Compression Force(kN) | 100 | 80 |
| MaxPre-compression Force(kN) | 20 | 20 |
| Rated Power(kW) | 11 | |
| Dimension LxWxH(mm) | 1080*1440*1950mm | |
| Weight(kg) | 1780 | |
Features
1.Compliant with GMP and FDA requirements
2.Servo motor controls the weight and hardness of pills
3.Special oil and dust resistant design
4.The overall design adopts a tight seal and dust-proof feature
5.Hydraulic pressure support system
6.Easy to disassemble structure with good maintainability
7.The tablet press room has a 360 ° no dead angle structure, making it easy to observe and clean
Application of Tablet Compression Machine
