Product Details:
|
| Name: | PLC Touch Screen Milk Tablet Press Equipment Pill Press Machine | Model: | SED-250-5Y-D |
|---|---|---|---|
| Punch Quantity: | 5sets | Max.tablet Pressure: | 60kn |
| Max.tablet Diameter: | 20mm | Max.filling Depth: | 15mm |
| Max.tablet Thickness: | 6mm | Turret Rotation Speed: | 36r/min |
| Motor Power: | 2.2kw | Overaall Size: | 480×635×1100 |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | tablet press equipment,pill press machine |
||

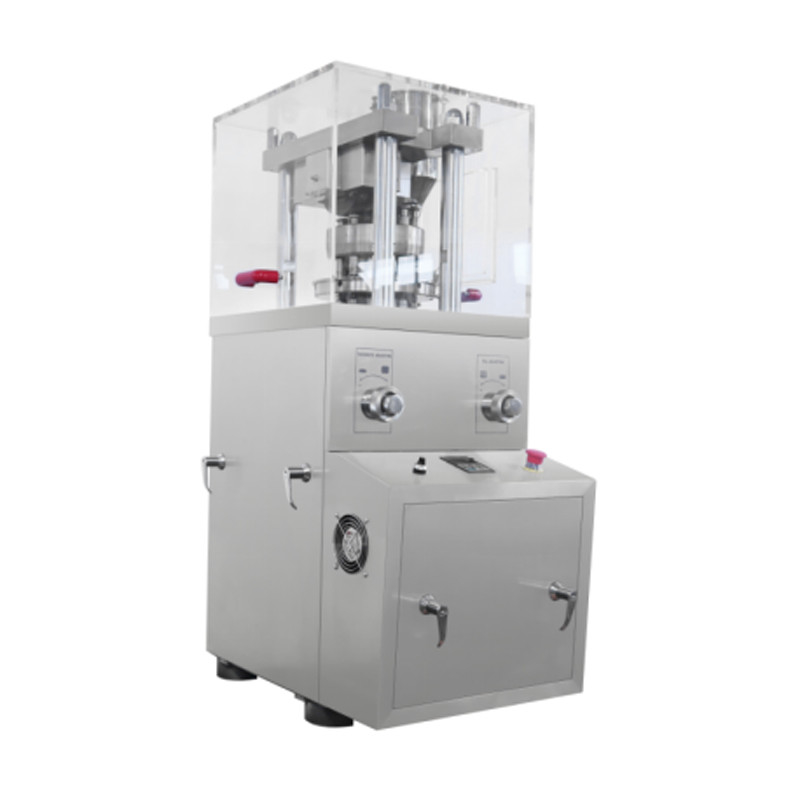

PLC Touch Screen Milk Tablet Press Equipment Pill Press Machine
Product Overview of Tablet Press Machine
The machine is a single-pressing type machine with automatic rotation and continuous tablet pressing used to press granular raw materials into various tablets. It is mainly used for tablet production in the pharmaceutical industry, and is also used in chemical industry , food, electronics and other industries.
The peripheral housing adopts a fully closed form. It is made of stainless steel. The internal table Surface is made of stainless steel. The turret surface is subject to special treatment to maintain luster on the surface and avoid cross contamination, conforming to GMP requirements.
The transparent doors and windows installed enable the tablet pressing status to be clearly observed. In addition , they can be opened to make internal cleaning and maintenance easy. All controllers and operating parts are reasonably arranged.
The variable frequency speed controller is adopted for electrical speed control with convenient operation, stable rotation and good safety and accuracy. All driving devices are located inside the machine, so the machine is kept clean.
It is equipped with the overload protective device to make the machine stop automatically in case of pressure overload. The machine is equipped with electromagnetic braking motor and other safety protectjve devices, so the machine can be adjusted and operated during its runnjng.
Product Parameters of Tablet Press Machine
| Model | SED-250-5Y-D | SED-250-7Y-D | SED-250-9Y-D | |||
| Dies (sets) | 5 | 7 | 9 | |||
| Max. Pressure (Kn) | 60 | 60 | 60 | |||
| Max. Thickness of tablet(mm) | 6 | 6 | 6 | |||
| Max. Filling Depth (mm) | 15 | 15 | 15 | |||
| Max production capacity (pieces/h) | 9000 | 12600 | 16200 | |||
| Turret rotation speed(r/min) | 0-36 | 0-36 | 0-36 | |||
| Punch form | EU D | EU B | EU D | EU B | EU D | EU B |
| Diameter of middle mould (mm) | 38.1 | 30.16 | 38.1 | 30.16 | 38.1 | 30.16 |
| Highness of middle mould (mm) | 23.81 | 22.22 | 23.81 | 22.22 | 23.81 | 22.22 |
| Diameter of up and down punch (mm) | 25.35 | 19 | 25.35 | 19 | 25.35 | 19 |
| Max. Dia. of tablet (mm) | 20 | 13 | 20 | 13 | 20 | 13 |
| Length of up punch pole (mm) | 133.35 | 133.35 | 133.35 | |||
| Length of down punch pole (mm) | 133.35 | 133.35 | 133.35 | |||
| Overall dimensions (mm) | 480×635×1100 | 480×635×1100 | 480×635×1100 | |||
| Net weight (KG) | 398 | 398 | 398 | |||
| Motor (KW) | 2.2 | 2.2 | 2.2 | |||
|
Voltage(V) (Voltage can custom made) |
415/380/220/110V 50/60Hz |
415/380/220/110V 50/60Hz |
415/380/220/110V 50/60Hz |
|||
Features of Tablet Press Machine
Adopts PLC control with auto protective function.
Touch screen operation. Operation menu is easy to understand
Force-feeding unit with a good applicability to powder
Central auto lubrication system
Main and pre-pressing, tablets formed twice.
Application of Tablet Press Machine
This machine is a single-press, continuous-type automatic tablet press, which is used to press granular raw materials into tablets.
Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
