Product Details:
|
| Name: | Double-press Multifunctional Automatic Rotary Tablet Pressing Machine | Model: | SED-680-23Y-B |
|---|---|---|---|
| Max. Pressure(KN): | 100 | Max. Dia. Of Tablet(mm): | 40 |
| Max. Depth Of Filling(mm): | 30 | Output(tablets/h): | 23000 Pcs/h (three-color Tablet) |
| Motor Power(Kw): | 7.5 | Turret Speed(r/min): | 10-25 |
| Material: | Stainless Steel | Key Word: | Tablet Press Machine |
| Highlight: | tablet press equipment,pill press machine |
||

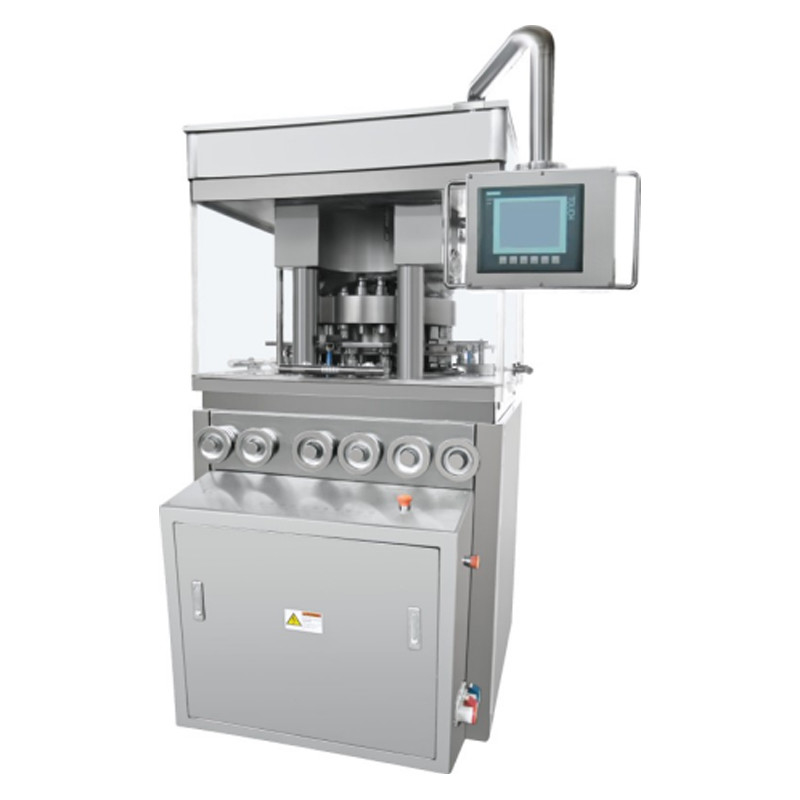

Double-press Multifunctional Automatic Rotary Tablet Pressing Machine
Product Description of Rotary Tablet Press Machine
SED-680-23Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press round tablets, special-shaped tablets, engraving tablets, etc. according to customer requirements.
Product Parameters of Rotary Tablet Press Machine
| Number of Punch Die | 23 |
| Capacity | 23000 pcs/h (three-color tablet) |
| Max. Working Pressure | 100KN |
| Max. Diameter of Tablet | 40mm |
| Max. Thickness of Tablet | 15mm |
| Max. Filling Depth | 30mm |
| Rotating Speed of Turret | 10-25rpm |
| Working Diameter of Turret | 445mm |
| Diameter of Middle Die | 52mm |
| Height of Middle Die | 38mm |
| Diameter of Upper & Lower Punch | 45mm |
| Length of Upper Punch | 175mm |
| Length of Lower Punch | 180mm |
| Voltage | 380V |
| Motor Power | 7.5KW |
| Net Weight | 3200kg |
| Overall Dimension | 1000*1250*1900mm |
Features
The outer casing is fully enclosed, and the material is made of stainless steel. The inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
The rotating speed can be adjusted freely.
Easy operation with touch screen and PLC control system, stable rotation, safe and accurate.
The transmission system is sealed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not pollute each other. The transmission shaft is infiltrated into the oil pool to be fully lubricated, reducing noise and wear.
The installed dust collection device can absorb the flying dust in the pressing room.
This machine has a large pressure and can adapt to the production of various large and small tablets and tablets that are difficult to form.
Application of Rotary Tablet Press Machine
Widely used in pharmaceutical, chemical, food, plastic electronics, powder metallurgy and other industries.
