Product Details:
|
| Name: | Highly Output Powder Capsule Filling Machine | Max.output(capsules/min): | 330000 |
|---|---|---|---|
| Filling Dosage: | Powder, Pellets, Tablet | Capsule Size: | Capsule 00# -5#/Safety Capsule A-E |
| Total Power: | 220V/380V 4.9Kw | Water Supply: | 500L/h,0.2-0.10Mpa |
| Dust Collector: | 160m3/h | Overall Dimension (mm): | 1700×1220×2150mm |
| Highlight: | capsule filling device,capsule filling equipment |
||

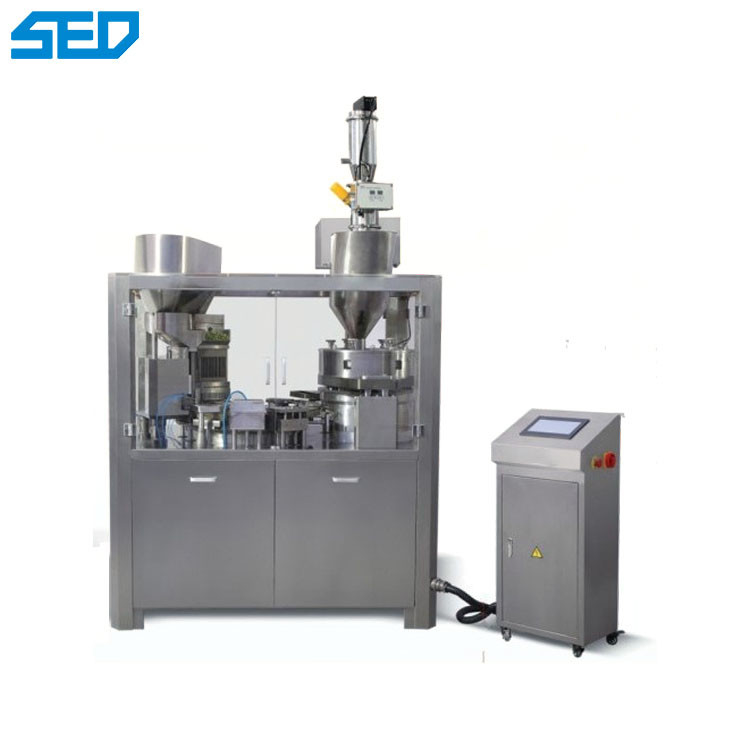

Highly Output Powder Medicament Filling Capsule Maker Machine
Product Description of Capsule Filling Machine
SED-5500J-C Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.
Technical Parameters
| Model | SED-5500J-C |
| Machine Weight | 3800kg |
| Overall Dimension | 1700×1220×2150mm |
| Motor Power | 13.5KW |
| Power Supply | AC380V 50Hz 3P4W |
| Capacity | 330000 capsules/h |
| Application | 00#-5# capsule, safety capsule A-E |
| Qualified Rate | ≥99.5％ |
| Working Noise | ≤75dBA |
| Filling Error |
≤±3％ (filling more than 300mg of 40-80 mesh granules) |
| Compressed Air | 0.09m3/min 0.3Mpa |
Characteristic
It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); The capsule qualified rate is higher than 99%..It can be filled with the Chinese traditional medicine and the Western medicine.
It has a protector equipment for the operator and the machine. It has an automatic pause equipment when it is lack for the material. It has a steady and safe working, it is the best choice for the hard capsule made factories.
Product Details of Capsule Filling Machine
Application of Capsule Filling Machine
