Product Details:
|
| Name: | Low Energy Consumption Full Automatic Capsule Filling Machine | Model: | SED-200J-A |
|---|---|---|---|
| Total Power: | 3KW | No.of Segment Bores: | 2 |
| Suitable For Capsule: | 00#-4# | Overwall Weight: | 350kg |
| Highlight: | capsule filling device,capsule filling equipment |
||

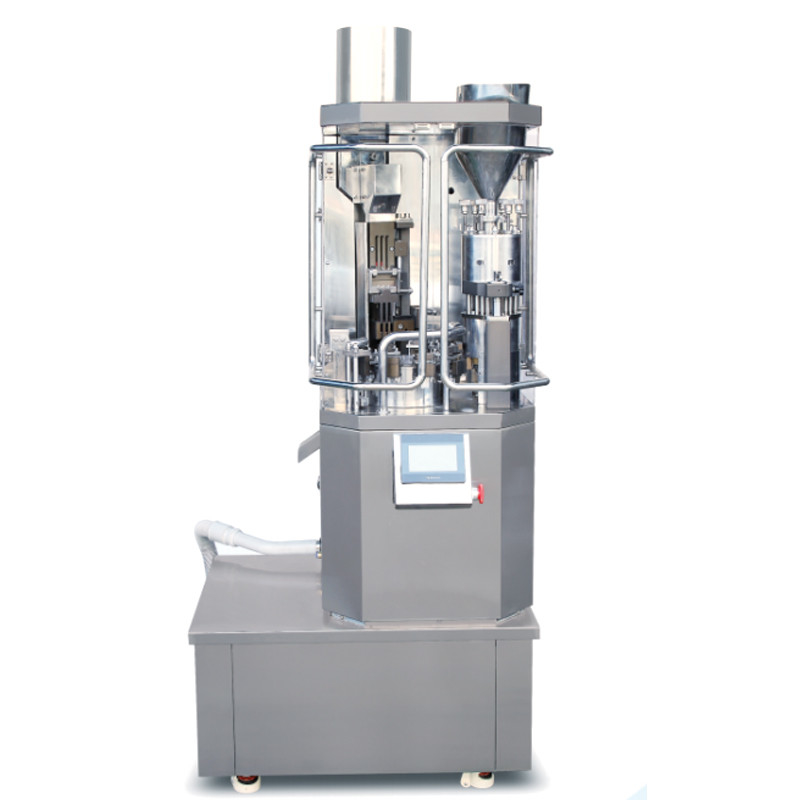

Low Energy Consumption Full Automatic Capsule Filling Machine
Product description of Capsule Filling Machine
It adopts hole plug type filling, batch-type running and frequency control. It is suitable for the whole capsule filling process: capsule feeding, separating, filling(waste capsule rejecting),closing, perfect capsule outputting, for powder and micro pill capsule.
Latest structure: The closed ten position rotating table, high precision, low noise and best suitable for domestic machine-made capsule, and soon the key parts of the bearing and electrical equipment adopts international famous brand, performance stability and can be run at a high speed.
Main Parameter of Capsule Filler
| Model | SED-400J-A | SED-200J-A |
| Output(pcs/min) | 400 | 200 |
| NO of Filling hole | 3 | 2 |
| Capsule filling hole | 00#-4# | 00#-4# |
| Total Power | 3kw | 3kw |
| Weight(kg) | 350kg | 350kg |
| Dimension(mm) | 700×570×1650mm | 700×570×1650mm |
Characteristic of Capsule Filling Machine
1.Small volume, low energy consumption, fast mold change, convenient.
2.The turning-around parts are in full closure, having excellent lubricating conditions. No oil dirt on the working bench, avoid the cross pollution with the medicine.
3.Shelter are fixed around the dose pan, which can recycle the powder, reduce the dust on working bench.
4.Adopt the man-machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsules lacking, and automatically stop for lacking of medicine powder, breakdown diagnosing display.
 |
|
|
Separation of capsule body and cap |
Powder filling |
|
|
|
Weeding of capsule |
Lock the capsule |
|
|
|
Finished product |
Clean the mold |
Application
Suitable for capsules 00-4 #
Can be filled with powder, granules, pellets or small pieces
|
|
|
| POWDER | GRANULES | PELEETS |
