Product Details:
|
| Name: | High Efficiency Auto Liquid Capsule Filling Machine | Model: | SED-260YJ-C |
|---|---|---|---|
| Total Power: | 5.75KW | No.of Segment Bores: | 2 |
| Suitable For Capsule: | 00#-5# | Overall Dimensions: | 1020×860×1970mm |
| Material: | Stainless Steel | Key Word: | Liquid Capsule Filling Machine |
| Highlight: | capsule filling device,capsule filling equipment |
||

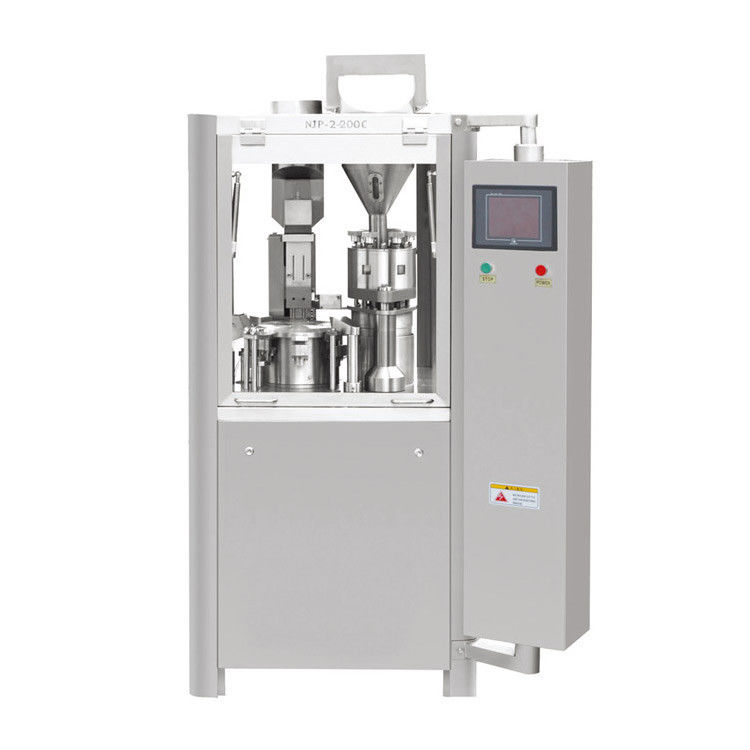

High Efficiency Auto Liquid Capsule Filling Machine
Product Description of Capsule filling machine
It can be filled in a hard capsule with solution, suspension, microemulsion. The peristaltic pump is used to add liquid and ensure the difference in loading. The machine with accurate measurement, fiber inspection, and automatic rejection.
This machine adopts the stepless frequency converter, which is convenient and easy to operate. This machine is the latest filling equipment for developing high-end products in the pharmaceutical, health care and other industries.
Product Parameters of Capsule filling machine
| Model | SED-260YJ-C |
| Weight | 600KG |
| Overall dimensions | 1020×860×1970mm |
| Motor Power | 5.75kw |
| Power supply | Three-phase four-wire AC 380V; 50Hz |
| Capacity | 15600pcs/hour |
| Fillable capsule |
00#～5# Safety capsule A～E |
| Capsule sowing accuracy | ≥99.5％ |
| Working noise | ≤75dBA |
| Filling volume difference | Liquid above 300mg≤±3% |
| Compressed air | 0.06m3/min 0.3Mpa |
| Water source requirements |
The water ring vacuum pump is used for recycling with the water tank (It can also be connected to an external water source) |
| Vacuum | -0.02～-0.06 MPa |
| Water source | 250L/h |
| Inlet pipe inner diameter | 20mm |
| Drain pipe inner diameter | 27mm |
| Working temperature | 21℃±3℃ |
| Relative humidity of working environment | 40～55％ |
| Exhaust volume | 300m3/h |
Working Principle of Capsule filling machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:
1. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it
enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.
2. The movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule
guide groove by its own gravity, and then the horizontal fork and the vertical plug are used to make the capsule cap upward and the capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.
Characteristic of Capsule filling machine
1.The fully automatic capsule filling machine has been improved the inner design turret, and imports beeling bearing for each machine from Japan directly, so that it can be sure a longer usage life and precision of the machine.
2.The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3. It is controlled by the computer, has as stepless timing with the frequency conversion the numeral showing makes an easy operation and clear appearance.
4.The multi-bore dosing bring a precision dosage; The good capsule applicability makes a high capsules qualified rate more than 99%. It can be filled with the Chinese traditional medicine and the western medicine.
5. Add the extra function of capsule control switch. Control the capsule outside of the machine, it is more safely and quickly.
6. Add the click-moving control system, make and easier operation and clearness.

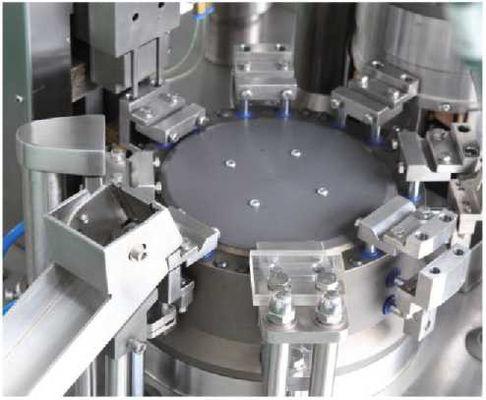

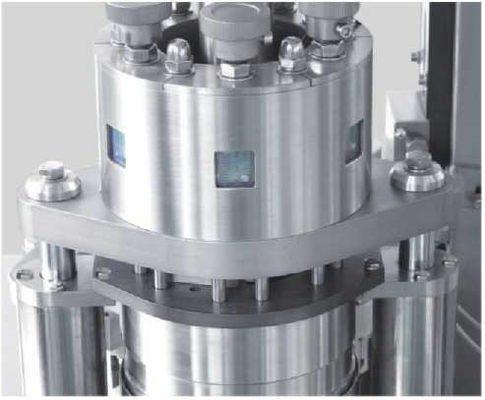

Product Details of Capsule filling machine
