Product Details:
|
| Name: | High Speed Auto Capsule Filling Encapsulation Machine For Pharmaceutical Lab Factory | Model: | SED-1500J-C |
|---|---|---|---|
| Power Supply: | 380V 50Hz 6.45kW | Noise: | <78dBA |
| Dimension: | 1000×1050×1950mm | Net Weight: | 1500kg |
| Material: | Stainless Steel | Key Word: | Automatic Capsule Filling Machine,Automatic Powder Capsule Filling Machine |
| Highlight: | capsule filling device,capsule filling equipment |
||

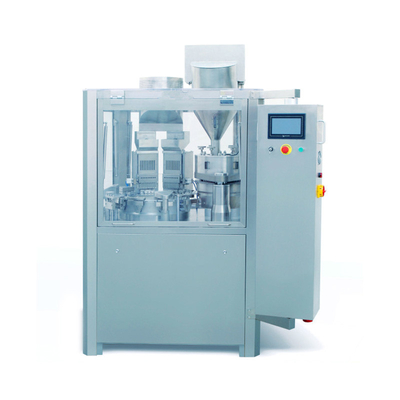

High Speed Auto Capsule Filling Encapsulation Machine For Pharmaceutical Lab Factory
Product Description of Capsule Filling Machine
The maximum capacity is 1500 grains per minute. Product standardization and series production: The universal interchangeability of manufactured parts reaches over 99%, and each component has a fixed code. The positioning holes and repeatability accuracy of mold replacement parts are high; Quick mold change, easy operation, and convenient cleaning.
Technical Parameters of Capsule Filling Machine
| Model | SED-1500J-C |
| Weight | 1500kg |
| Size | 1000×1050×1950mm |
| Power | 6.45kw |
| Voltage | AC 380V;50Hz |
| Capacity | 90000 pcs/h |
| Capsule size | 00#～5#,safety capsule A～E |
| Noise | ≤75dBA |
Features
Working Principle of Capsule Filling Machine
The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:
1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering
disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the
capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.
2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it
enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.
Application of Capsule Filling Machine
