Product Details:
|
| Name: | Semi Automatic Powder Capsule Filling Machine For Pharmaceutical | Adjust New Mould Time: | 5-8 Minutes (for Beginner) |
|---|---|---|---|
| Production Capacity: | 10000-25000 Capsules / Hour (depends On The Capsule Size) | Filled Material: | Powder (without Wet Or Sticky); Granules. |
| Total Power: | 2.12KW | Compressed Air: | 0.03m 3 /min, 0.7Mpa |
| Vacuum Pump: | Exhaust 40m 3 /h | Packing Dimension: | 1650*800*1750mm |
| Material: | Stainless Steel | Key Word: | Powder Capsule Filling Machine Automatic Capsule Filling Machine |
| Highlight: | capsule filling device,capsule filling equipment |
||

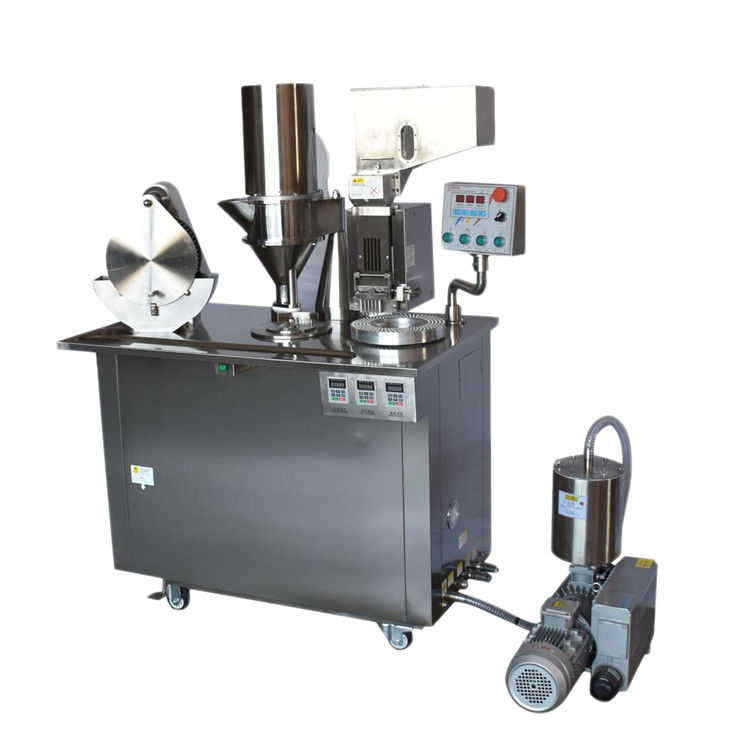

Semi Automatic Powder Capsule Filling Machine For Pharmaceutical
Product Description of Capsule Filling Machine
The semi automatic capsule filling machine is a special machine which is suitable for the medium, small pharmaceutical factory and hospital labs. It adopts programmable control system, touch panel operation, step-less transudation speed shift, and electronic counter.
The semi automatic capsule filling machine can complete the actions of position, separation, filling and locking. The dosage is accurage and the operation is very easy to learn. The overall machine is made of stainless steel, and it is suitable for the capsules which filled with powder and grains.
Detailed Parameters of Capsule Filling Machine
| Adjust new mould time | 5-8 minutes (for beginner) |
| Production capacity | 10000-25000 capsules/hour (depends on the capsule size) |
| Suitable capsule | 000#,00L#,00#,0L#,0#,1#,2#,3#,4#,5# mechanical made standard capsule. |
| Filled material | Powder (without wet or sticky); granules. |
| Total power | 2.12KW |
| Compressed air | 0.03m 3 /min, 0.7Mpa |
| Vacuum pump | Exhaust 40m 3 /h |
| Overall dimension | 1200*700*1650mm |
| Packing dimension | 1650*800*1750mm |
| Gross Weight | 420 KGS |
Characteristic of Capsule Filling Machine
1. The capsule orientator adpts that from automatic capsule filling machine and makes the machine more efecient and mould replacement more simple and easy;
2. The capsule disc is made from thick aviation aluminum board instead of cast aluminum and honey-holes in the disc is avoid. The disc is more smooth than before.
3. The powder collecting trough on the desk-top is presse made instead of that welded. So, it is easy to clean and polution is avoid. If anyone is interested in the new design machine, we are able to provide vedio for demonstration.
Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
