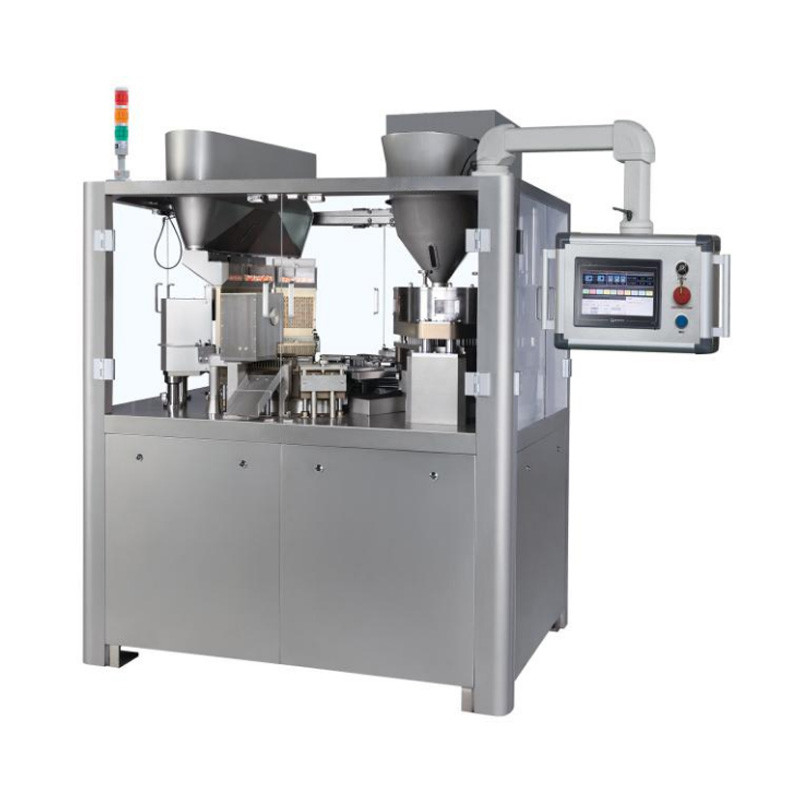

High Production Full Automatic Capsule Encapsulation Machine

High Production Full Automatic Capsule Encapsulation Machine

Product Description of Capsule Filler

Our capsule-filling machine is used to encapsulate product (powder, and pellets) in gelatin capsules. Empty capsules are loaded into the capsule hopper where they are fed into the magazine. Capsules initially enter the magazine un-oriented. From the magazine, the capsules enter the sorting block where they are properly oriented (smaller end on the bottom). The capsules are then separated by vacuum. The lower portion of the capsule is filled. The upper portion of the capsule is inspected to ensure the capsule is separated. (If the capsule is not separated or is faulty, a pin will dislodge the capsule and the vacuum will remove it from the system.) The two halves are then joined together. The finished capsule is discharged to a chute and the station is cleaned with an air blast.

The capsule filler can use all makes of capsules (00#～5# and safety capsule A～E). Non-separated or improperly inserted capsules will be automatically rejected. Capsule target fill weight can be adjusted by changing dosing disks. At the end of a run, only a small quantity of product will be remaining in the hopper.

Technical Parameters of Capsule Making Machine ​

Features of Capsule Filling Machine ​

1.Machine supplied with HMI, PLC controller. Ready to connect with automatic management computer network.
2.Online monitoring of running state, failure diagnosis display.
3.Empty capsule feeding alarm, auto stop on powder feeding. Guarantee average dosage.
4.Totally enclosed frame rotary table prevents contamination, and is easy to clean.
5.Filling structure especially designed for easy cleaning.
6.High quality components of driving system provide high precision.
7.Powder homogenizer (Chinese patent) inside powder chamber, ensures even distribution of filling powder, even with bad flowing powder.
8.85% of lost powder in filling section can be recovered by powder collector (Chinese patent), enabling it to be re-used.
9.Filling structure is easily raised, (Chinese patent) which allows for easy cleaning.
10.Double-sided grooved cam (Chinese Patent), guarantees steady filling and is much longer lasting.
11.Machine built to comply with European Community directives in terms of safety (CE marking) i.e.:
12.-Directive Machine 98/37/EC
13.-Low Voltage Directive 73/23/EEC as amended by 93/68/EEC

Working Principle of Capsule Filling Machine

The working principle of the automatic capsule filling machine is divided into two parts, which are the movement of the capsule and the filling of the medicine:


1. Movement of the capsule
During the filling process of the intermittent capsule filling machine, the movement of the capsule depends on the indexing box for intermittent and discontinuous rotation. The filling volume of the capsule is mainly determined by the volume of the metering

disc hole. The hollow capsule is in the capsule hopper, the main board moves up and down, the capsule enters the capsule guide groove by its own gravity, and then the horizontal fork and the vertical plug make the capsule cap upward and the

capsule body downward into the upper and lower modules. The capsule body and capsule cap are separated under the action of the device, and then the module enters the powder filling station.


2. Drug filling
The sensor in the powder holding ring controls the screw feeding rod above it, and the medicine is continuously added to make the height of the powder in the powder holding ring constant. position, push the drug column into the capsule body. After that, it

enters into the capsule rejection, capsule locking, finished capsule discharge, module cleaning station in turn, and then enters a new round of station cycle, and the cycle begins again and again.

Application of Capsule Filling Machine

Function Diagram:





Machine complete with:

• 12-station capsule-holder rotary table plate for process
• 6-station powder tamping & filling device ensuring maximum dosing accuracy
• Capsule orienting, placing and separating system
• Capsule placing lock which is convenient for adjustment of the machine
• Powder feeding auto start/stop system with sensor
• Powder homogenizer inside feeding device
• Hoisting powder hopper for easy replacement of size change parts
• Powder feeding screw providing smooth feeding
• Empty capsule feeding alarm
• Powder feeding alarm/auto stop system
• Dosing disk enabling filling dosage changing and provides more stable performance
• Dosage micro adjusting system provides a high accuracy
• Double-sided grooved cam system for more stable running
• Defective capsules rejecting system
• Die hole cleaning system
• Finished product-ejecting system.
• Four protective doors with synthetic glass enabling operator to see the processing condition
• Interlocking protection connected with protective door to avoid machine running while doors are open
• Electronic protection against overload
• Grounding protection for eliminating risk of electric shock to operator
• High quality machine gearmotors
• High quality machine vacuum pump
• High quality cam graduator, provide long lasting and stable performance
• Dust collector for cleaning defective capsules and waste materials
• Powder collector for recycling waste powder
• Machine frame made of stainless steel, mounted on rubber shock pad
• VERIFICATION OF MD COMPLIANCE issued by SGS (CE marking)
• GMP VALIDATION FILE (package including IQ, OQ, PQ)

Only for basic Model C:

-Mode lock to avoid operator’s incorrect manipulation to run the machine on debug mode.

-Touch screen with protect cover enabling easy operation

-PLC

Upgrade to Model E:

-FDA CFR211 e-signature, e-recording

-High-capacity HD can be record message, meet CGMP and FDA

-Prepare with OPC Server, OPC Client

New designed central turret
Double-lip seal ring for single motion shafts, gives much higher sealing performance than ever before. Simpler mechanical design for easier cleaning.

Double-side groove inner cam (Chinese patent)
Filling parts adopt double-side groove inner cam, to ensure equal force for filling operation mechanism, improve the filling pressure and dose precision, and increase the service life of machine.

Powder tamping & filling part
Powder homogenizer (Chinese patent) inside powder chamber, ensures even distribution of filling powder, even with bad flowing powder.



New capsule-discharge device
Adopts mechanical structure driven with main motor, avoid powder pollution of blowing capsule.

Segment cleaning station
The station is cleaned with an air blast before enter next turn.

Operation box
Model C with touch screen
