Product Details:
|
| Name: | Pharmaceutical Grade Capsule Pill Candy Counting Machine | Suitable Bottles: | Round Square |
|---|---|---|---|
| Product: | 0 Capsule | Quantity: | 2-9999capsule/bottle |
| Capacity: | 70-90b/min | Power And Voltage: | AC220V 50Hz 0.8kw |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | electronic pill counter,pill counter machine |
||
Product Description of Capsule Counting Machine
The bottle stopper device on the bottle feeding rail of the conveying bottle mechanism will block the bottle conveyed from the upper device and stop at the bottling position, waiting for filling.
The capsule enters the chamber through the vibration of the feeding corrugated board, and the counting photoelectric sensor is installed on the medicine chamber.
The medicine falling into the chamber is quantitatively counted by the photoelectric counting sensor and then loaded into the bottle in the bottling position.
Detailed Parameters of Capsule Counting Machine
| Suitable bottles | Round square |
| Product | 0 capsule |
| Suitable bottles | Round square |
| Product | 0 capsule |
| Quantity | 90capsule/bottle |
| Capacity | 70-90b/min |
| Power and voltage | AC220V 50Hz 0.8kw |
| Accuracy | >99.5% |
| Dimension | 2160*1530*1700mm |
| Weight | 710kg |
Trait of Capsule Counting Machine
1) Strong compatibility,It can count and bottle various kind of solid preparation or solid granules for example , tablet (including heteromorphism tablet),capsule,soft capsule( transparent and non-transparent),pill etc.
2)Vibration cutting: channel vibration under homogeneous materials, unique patent agencies blanking, turning out material is steady, not damage
3) Anti high dust :Adopting the anti high dust photoelectric sensing technology only developed by our company ,it also can work stably under the high dust circumstance.
4)Correct counting :With automatic photoelectric sensor counting ,the error of bottling is less than nation standard
5) Special structure of the discharge spout, can prevent blocking drugs, small bottle can fast bottling (optional)
6) High intelligence :It has various alarm and control functions like no bottle no count, check fault automatically and so on.
7) High intelligence :It has various alarm and control functions like no bottle no count,check fault automatically and so on
8)Easy operation :Adopting intellectualized design, all kinds of operation data can be set according to the requirement .It can store 10 groups of setting parameters for use.
9)Convenient maintenance :After simple training, the worker can operate easily.It is easy to disassembly, clean and change the components without any tools.
10)Sealing and dustproof :Dust collection box is available, it can reduce the dust pollution. (Optional)

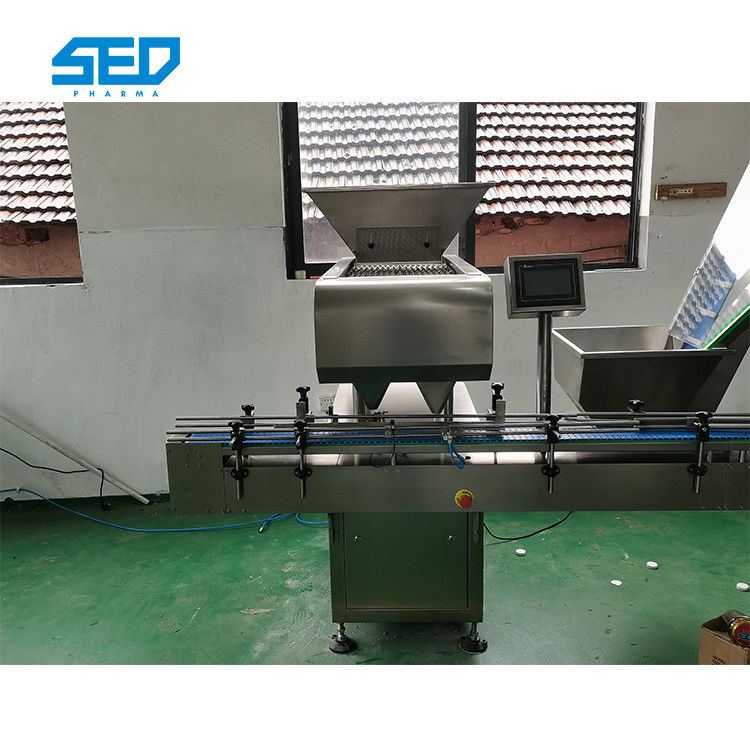

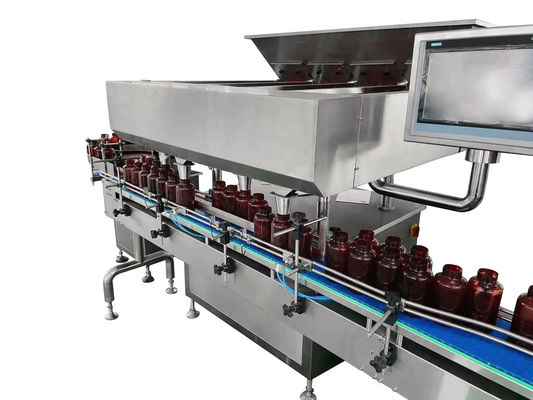

Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
