Product Details:
|
| Name: | Low Noise Automatic Tablet Capsule Counting Machine | Power Supply And Consumption: | 220V/50HZ 2.5kw |
|---|---|---|---|
| Compressed Air: | 0.6Mpa | Machine Weight: | 710KG |
| Machine Size L × W × H (mm): | 2160*1530*1700mm | Work Range: | Adjustable From 2-9999 Per Bottle |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | electronic pill counter,tablet counting device |
||

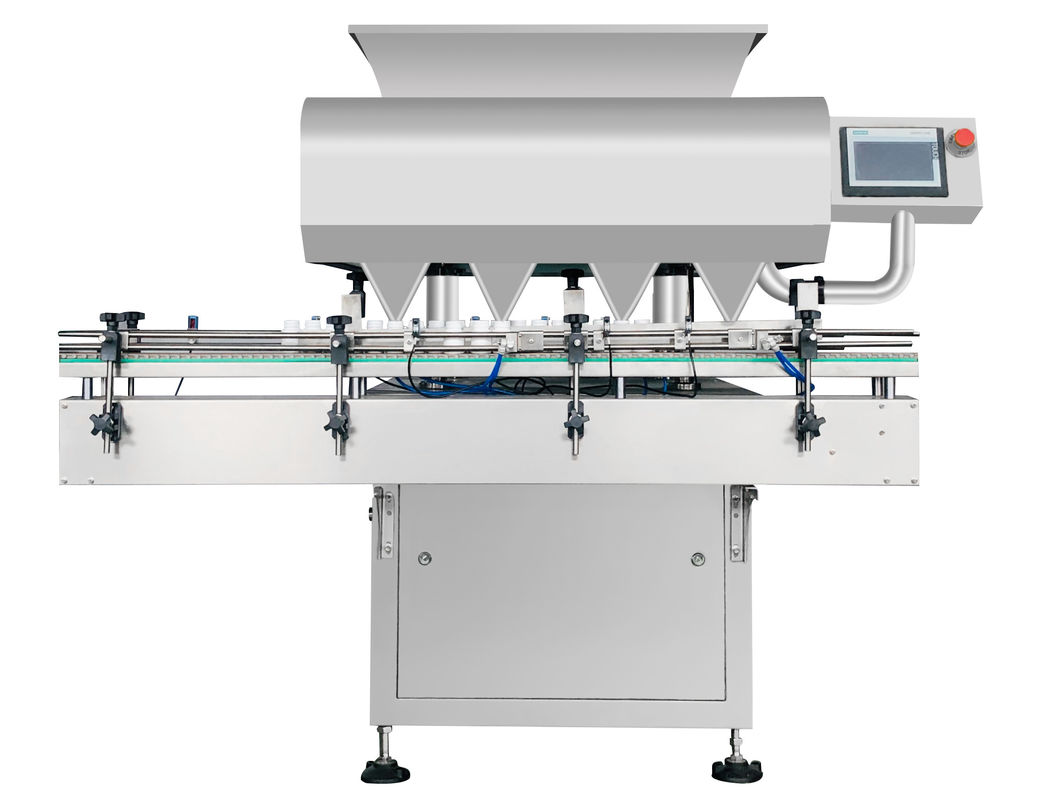

Low Noise Automatic Tablet Capsule Counting Machine
Product Description of Capsule Counting Machine
This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement.
The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in an orderly manner through the vibration of the feeding corrugated plate, and is counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.
Detailed Parameters of Capsule Counting Machine
| Model Name | SED-32S |
| Application |
(Diameter: 5.5-22mm) |
| Hopper Volume | 82L |
| Capacity | 10-100 bottles/min |
| Filling Quantity | 2-9999pcs/bottle (adjustable) |
| Bottle Size |
Diameter ≤50mm Height ≤180mm |
| Conveyor Belt Width | 114mm |
| Compressed Air | 0.6Mpa 5L/min |
| Voltage | 220V 50HZ Single Phase |
| Power | 1.3KW |
| Weight | 710kg |
| Overall Dimension (L*W*H) | 2160*1530*1700mm |
Characteristic of Capsule Counting Machine
Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
Vibratory cutting drugs do not damage;
A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
Low prices, especially for small-volume, variety and more manufacturers use.
Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
