Product Details:
|
| Name: | 16 Passageway Capsule Counting Machine For Pharmaceutical Packaging | Steady Speed: | 10,000 Granules/min |
|---|---|---|---|
| Filling Volume Of Single Bottle: | 2~9999 Grain | Drug Specifications: | T:3~10mm DIA:3~13mm L:3~21mm |
| Bottle Specifications: | DIA:20~100 Mm H:40~240 Mm | Power Supply: | AC220V 50/60HZ ,3.2KW |
| Air Pressure: | 0.5~0.7Mpa | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | electronic pill counter,tablet counting device |
||
Product Description of Counting Machine
Pure Granules into top hopper, adjust primary, intermediate or last stage vibration feeder, then medicine granules in hopper drop into material-dropping mouth continuously in line along vibration trough slab.
Granules drop into checking passageway one by one, infrared ray dynamic scanning transducer will catch signals about granules and put them into FPGA high-speed microprocessor, counting will be finished with the cooperation of electric circuit and program
Detailed Parameters of Counting Machine
| Items | Specific parameters |
| Steady speed | 10,000 granules/min |
| Filling volume of single bottle | 2~9999 grain |
| Drug specifications | T:3~10mm DIA:3~13mm L:3~21mm |
| Bottle specifications | DIA:20~100 mm H:40~240 mm |
| Power supply | AC220V 50/60HZ ,3.2KW |
| Air pressure | 0.5~0.7Mpa |
| Air consumption | 200L/min (clean air) |
| Boundary dimension(L×W×H) | 1560*1530*1700mm |
| Weight | 480KG |
Trait of Counting Machine
ablet counting machine through 16 strips of channel ,medicament can lay off through passing two classes automatically ,falling medicines is uniform and counting tablets is precise ,being suitable for all kinds of single bottle filling quantity and tablet type ,changing variety without replacing and mould .
It adopts the sensitive technology of the CCD and its distinguishing rate is high ,responding speed is fast ,and the operating is the man machine interface touch screen .Adopting international name brand photo-electricity controlling system ,controls when bottles are lacking and blocking ,then cease automatically ,the operating is stable and reliable .Materials touching with the medicine conforms to the requirements of GMP.
Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.

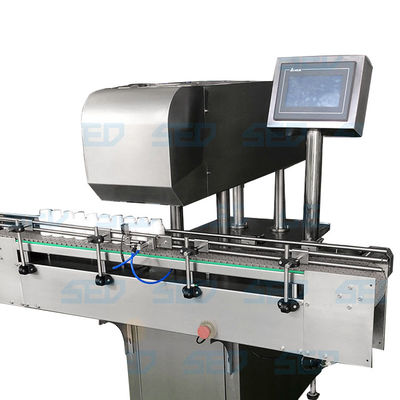

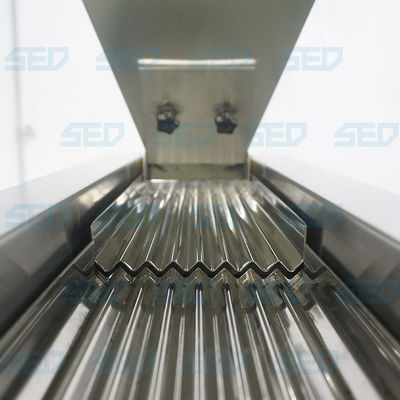

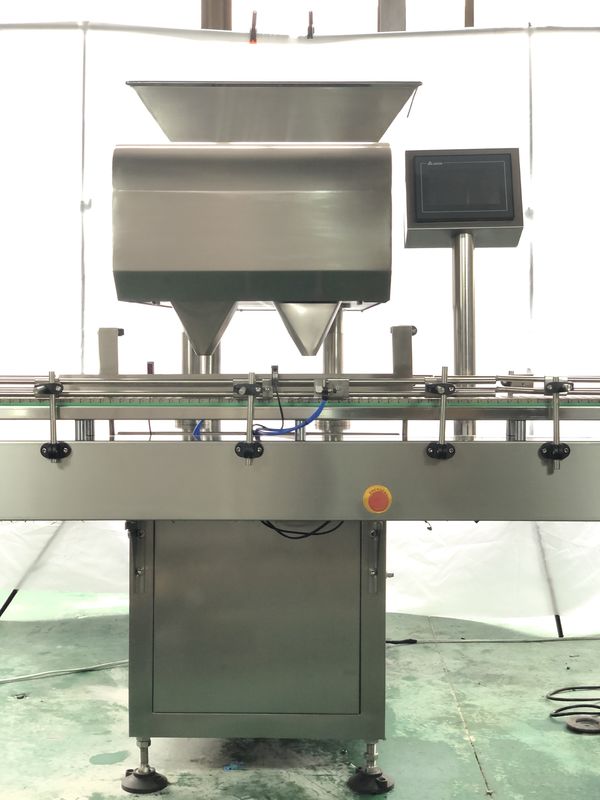

Photo show of Counting Machine
Application of Counting Machine
Counting machine is suitable for pharmaceutical, hospital, food and other industries, counting, bottling and bagging capsules, tablets, granules and other drugs or food. It is also suitable for counting, bottling, bagging and canning of other solid objects with regular shapes.
